Roof metal Cold Roll Forming Equipment For Color steel plate

Temel bilgi
Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC343
Minimum Order Quantity: 1set
Fiyat: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Detay Bilgi
Vurgulamak:

metal forming machines

,

cold roll forming equipment


Ürün Açıklaması

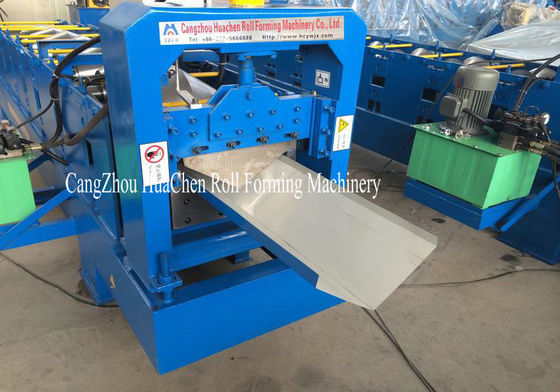

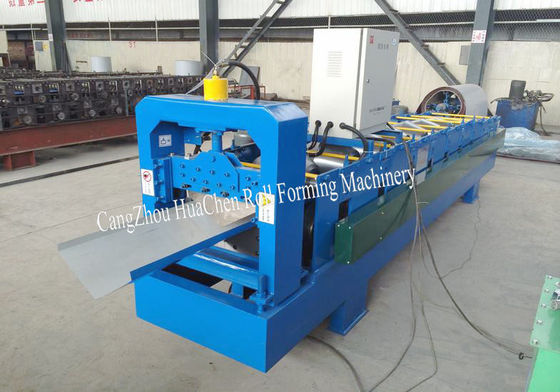

Roof metal Cold Roll Forming Equipment For Color steel plate





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 11 rows

4. Dimensions: 5.4*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

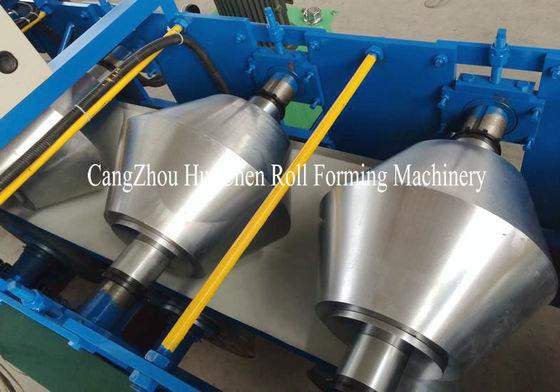

Rollers

11rows

4

Dimensions

5300*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

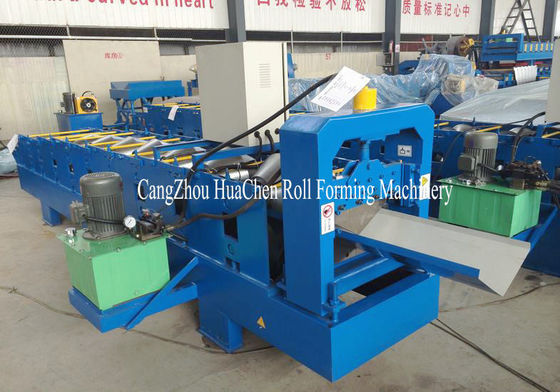

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application

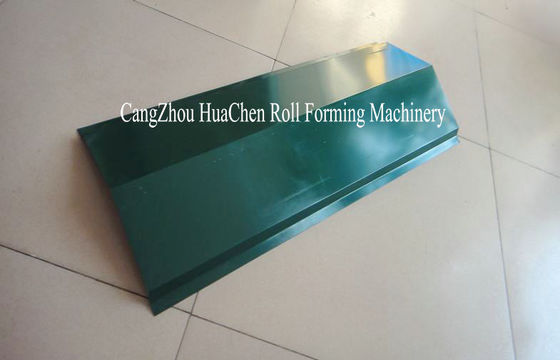

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
