Ürün ayrıntıları:
|
| Steel Thickness: | 0.3-0.6mm | Forming Speed: | 8-10m/min |
|---|---|---|---|
| Roller Stations: | customized | Roller Material: | 45# steel |
| Power Supply: | 380V, 50Hz, 3Phase | ||
| Vurgulamak: | metal roll forming machine,sheet metal roll forming machines |
||

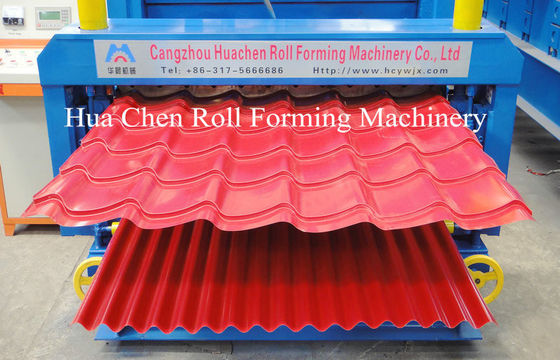

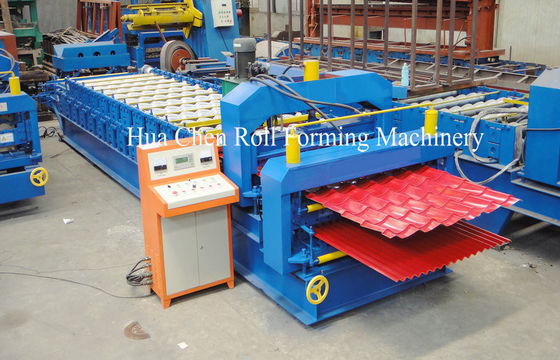

Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine
Double Layer Colour coated Steel Roof Panel Wall Panel Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/12 rows
4. Dimensions: 8.1*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Double layer glazed tile roll forming machine Main parameter
|
No. |
Main parameter of Double layer glazed tile roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250mm |
|
3 |
Rollers |
upper level :12rows Down level :12 rows |
|
4 |
Dimensions |
8100*1550*1910mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
upper level :4m/min Down level:20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting
Application
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Plate Body Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Plate Body Roll Forming Machine from us at pocket friendly prices.
Features:
Impeccable performance
Robust construction
Maintenance free
Long functional life
