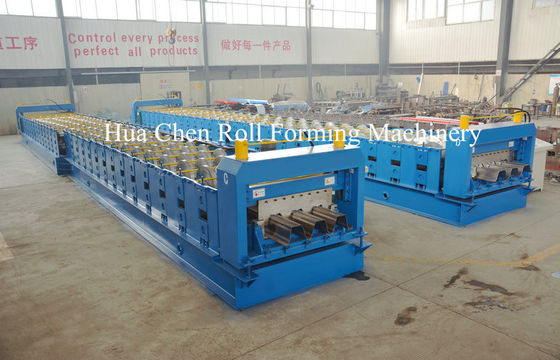

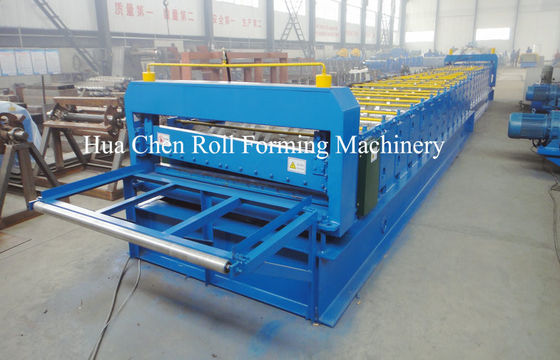

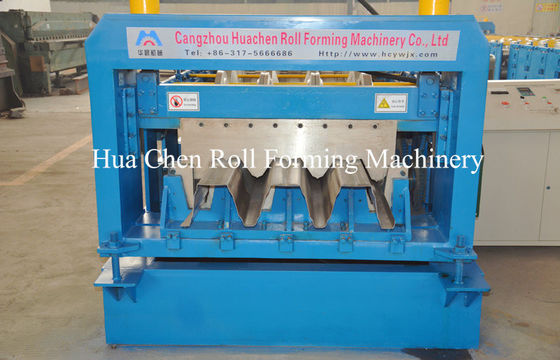

Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW

Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW
Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW

Büyük resim :  Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC151
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 28000-6900USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Metal Floor Deck Cold Roll Forming Machine for Thickness 1.5mm 22KW

Açıklama
Usage: floor deck Thickness: 1.5mm
speed: 10m/min roller: 24 rows
weight: 20T warranty: 1 year
Vurgulamak:

wall panel roll forming machine

,

rolling forming machine

Floor Deck Roll Forming Machine

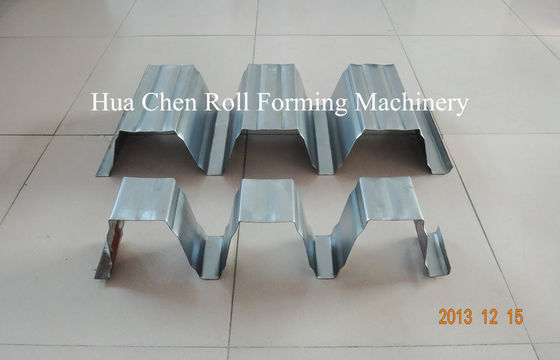

Floor deck forming machine is galvanized steel as a raw material, after rolling cold-formed technology, die forming, mainly used for the production of steel works with floor boards, rolled into the floor boards after its V-shaped cross-section into categories, U-type, a ladder or a combination of several shapes, mainly used to make permanent formwork composite slab or concrete slab.



Description:



Floor Deck Roll Forming Machine Main parameter

No.

   Main parameter of Floor Deck Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1500mm

3

Rollers

28 rows

4

Dimensions

12700*1.85*1.61m

5

Power

33+11.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

1.5mm

7

Productivity

15m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

Manual Un-coiler
◊ Max Capacity: 5000kgs ◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Width: According to Drawings
◊ Height: According to Drawings
◊ Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil
◊ Motor Power: 18.5 kw forming system
◊ Roller material: C45 steel, chrome coated
◊ Diameter of shaft: 110 mm
◊ Transmission: by chain and gear
◊ Measuring accuracy: +/- 0.5 mm/M
◊ Base Frame: 400 H steel welded
◊ The machine base is assembled and welded by high quality steel
◊ Total Length of Machine: 11.8 m
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Blade Material: Cr12
◊ Hydraulic power: 4 kw hydraulic system.
◊ Hydraulic Station Structure: 300mm steel welded. Four guide columns.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc



Application



This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.





> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free.
> We will provide the technical support for the whole life of the equipment.

>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
