Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers

Çin Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers Tedarikçi
Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers Tedarikçi Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers Tedarikçi Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers Tedarikçi Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers Tedarikçi

Büyük resim :  Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC25

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı

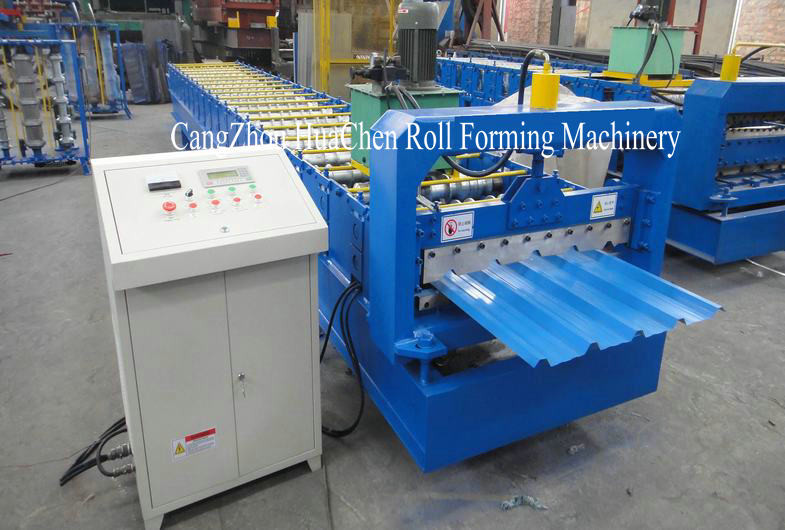

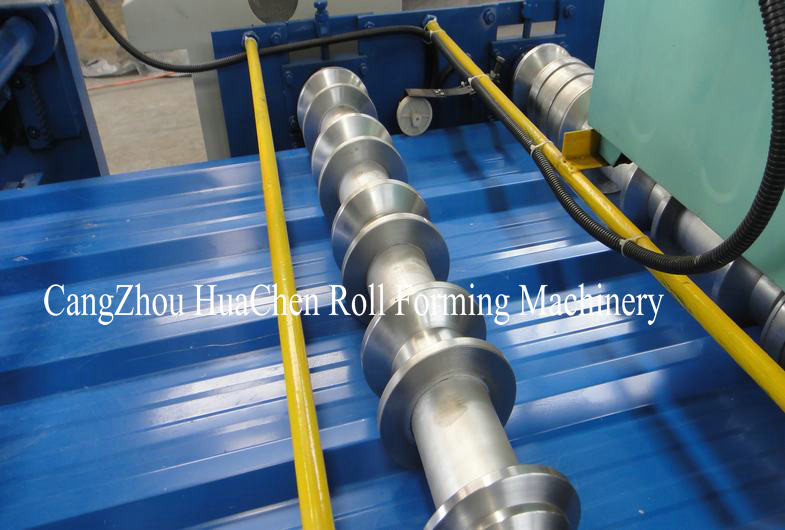

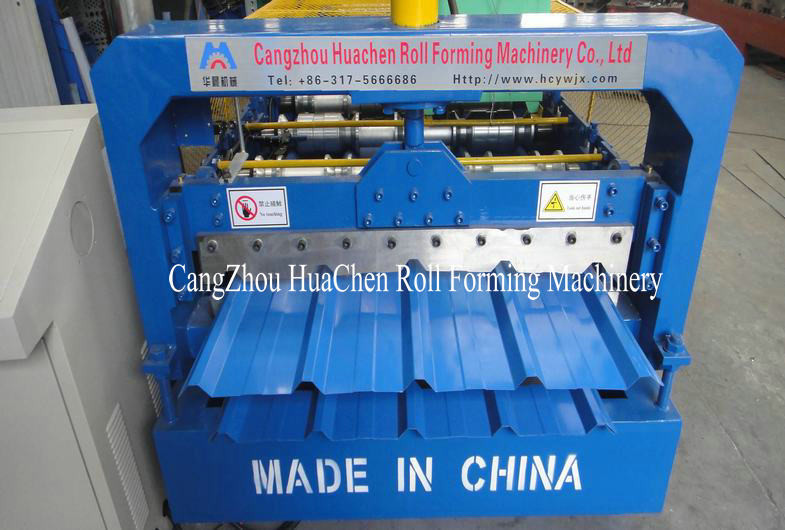

Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers







Color Sheet Profiles Roll Forming Machine, Color Coated Roof Panel Making Machine





1 .Working Flow:



φ70mm Galvanized Roofing Sheet Roll Forming Machine With 19 Rows Rollers

double sheet forming machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting





Quick Detail:



 φ70mm Galvanized Roofing Sheet Roll Forming Machine With 19 Rows Rollers



1. Suitable to process: Color steel plate

2. Width of the plate: 500mm

3. Rollers: 16 rows

4. Dimensions: 7.8*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description: φ70mm Galvanized Roofing Sheet Roll Forming Machine With 19 Rows Rollers



Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers



Main parameter

No.

Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

Rollers

19 rows

4

Dimensions

9100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

7

Thickness of the plate

0.3-0.6mm

8

Productivity

8-10m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

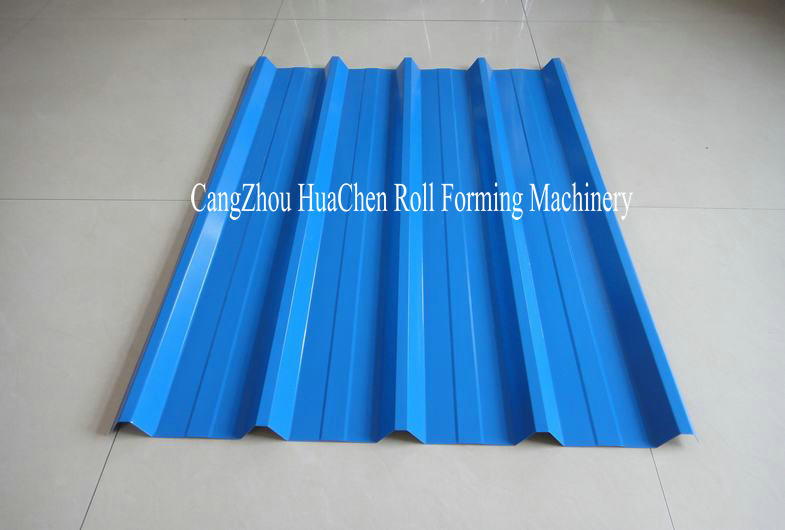

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.



Automatic Roof Sheet Galvanized Steel Roll Forming Machine With 19 Row Rollers



Competitive Advantage



1. operations safety

2. nice appearance, high quality

3. reasonable price

4. CE certification

5. ISO certification
