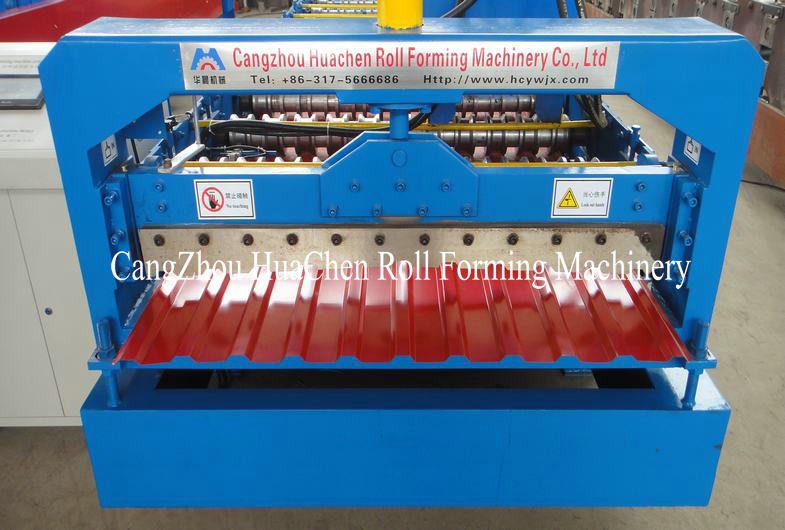

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

Çin Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Tedarikçi
Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Tedarikçi Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed Tedarikçi

Büyük resim :  Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC12

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı

Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed



Working Flow:

10m/min High Speed Wall Panel Roll Forming Machine Making IBR Profile

double sheet forming machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting



Quick Detail: 10m/min High Speed Wall Panel Roll Forming Machine Making IBR Profile



1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 10 rows

4. Dimensions: 5.3*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Description: 10m/min High Speed Wall Panel Roll Forming Machine Making IBR Profile



Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed



Wall Panel Roll Forming Machine Main parameter

No.

   Main parameter of Wall Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250 mm

3

Rollers

10 rows

4

Dimensions

5300*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

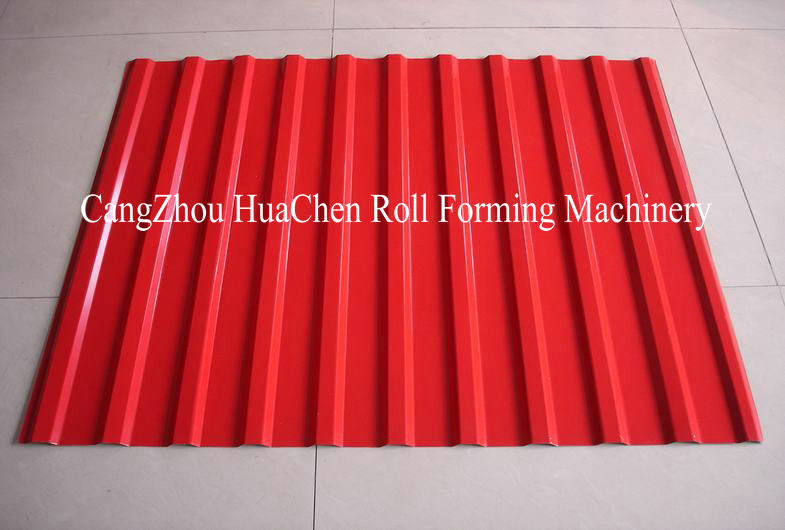

Application



Trapezoidal Roof Wall Panel Cold Roll Former Galvanized Steel High Speed

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
