Ürün ayrıntıları:
|
| Vurgulamak: | roof tile roll forming machine,cold roll forming machine |
||
|---|---|---|---|

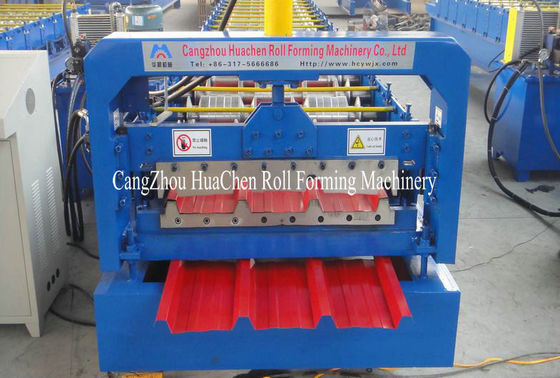

38mm High Rib Roofing Sheet Roll Forming Equipment , Roof Panel Roll Forming Machine
Description: 38mm High Rib Roofing Sheet Roll Forming Machine Equipment
Main parameter
|
No. |
Main parameter of Roofing Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
914mm |
|
3 |

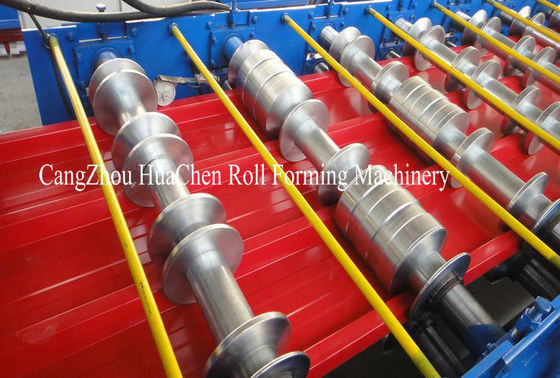

Rollers |
19 rows |
|
4 |
Dimensions |
9100*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
15-20m/min |
|
9 |
Diameter of the roller |
Φ70mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

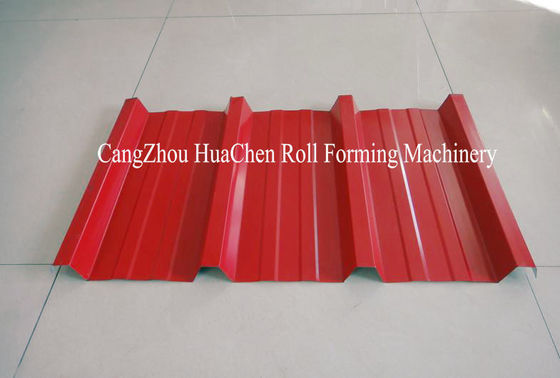

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. CE and ISO certification
2. use for roofing and wall
3. high strength, anti-corrosion
4. One year free warranty
5. provide lifelong technique service
