70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

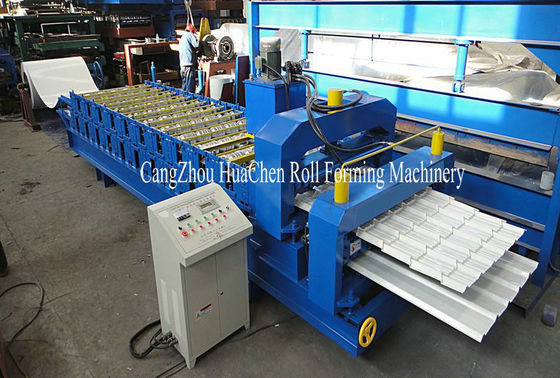

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

Çin 70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi
70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi 70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi 70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi 70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi 70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller Tedarikçi

Büyük resim :  70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model Number: HC23-24

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
color: blue control system: PLC control
type: automatic cutting method: hydraulic cuting
voltage: 380V, 50Hz, 3 Phase

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

3. Rollers: 11/11rows

4. Dimensions: 12.6*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Main parameter

No.

 Main parameter of Double layer glazed tile roll forming machine

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

upper level :11rows

Down level :11 rows

4

Dimensions

12600*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

upper level :4m/min

Down level:20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control



Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller

70mm Shaft Diameter Double Layer Glazed Tile Roll Forming Machine With 11 Row Roller



Application

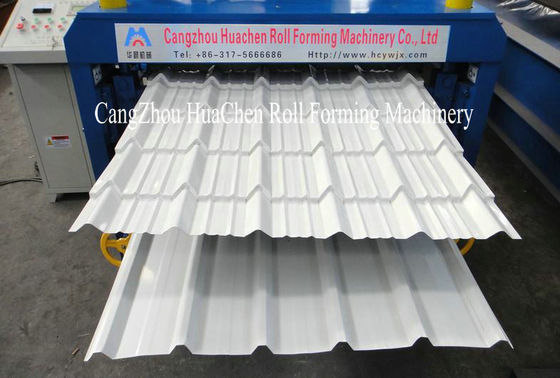

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





Competitive Advantage



1. Pretty appearance

2. Various special model

3. mature foreign trade team

4. professional designing team

5. Lifetime maintenance

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
