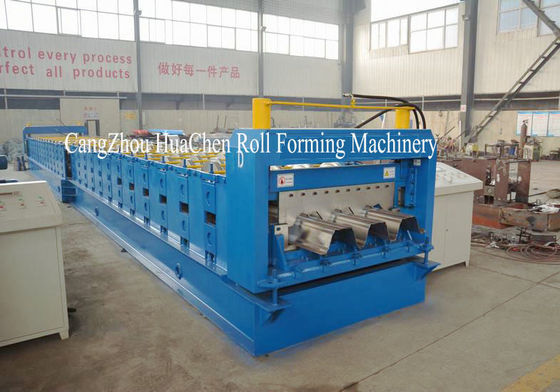

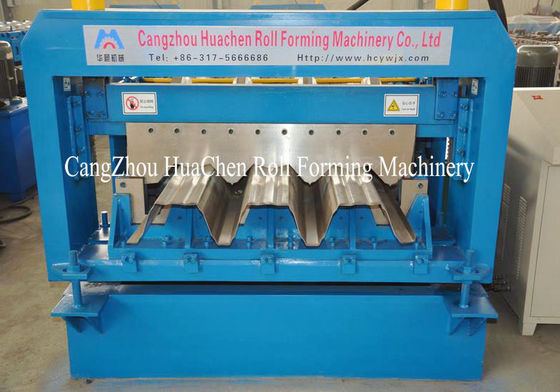

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor

Müşteri yorumları
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor
28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor

Büyük resim :  28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model numarası: HC161
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 15000-59000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor

Açıklama
color: blue type: automatic
control system: PLC control cutting method: hydraulic cutting
per month: 30sets workers: 100
Vurgulamak:

wall panel roll forming machine

,

metal deck roll forming machine

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor





Description:



Main parameter

No.

   Main parameter of Floor Deck Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1500mm

3

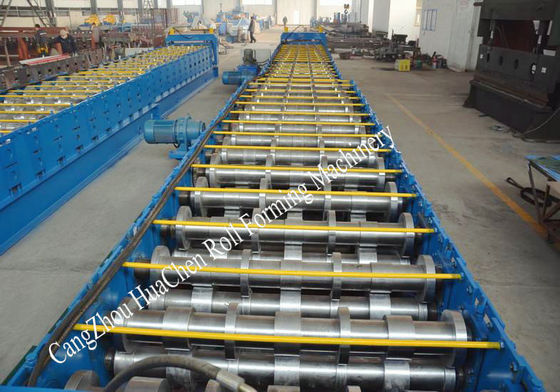

Rollers

28 rows

4

Dimensions

12700*1.85*1.61m

5

Power

33+11.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

1.5mm

7

Productivity

15m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

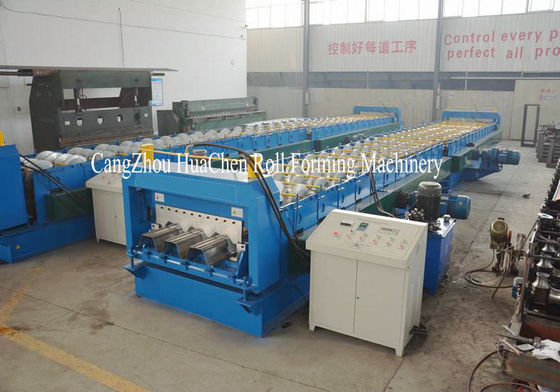

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 0

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 1

28 Roll Stations Floor Deck Roll Forming Machine For Construction Floor 2

Application

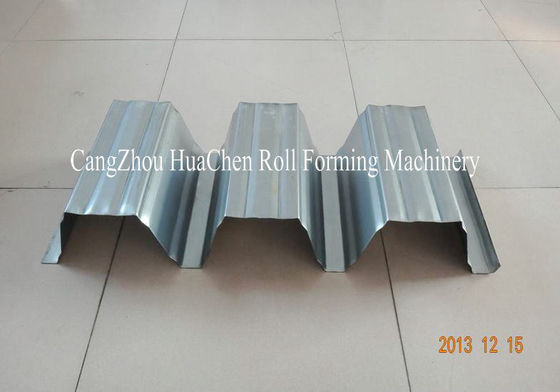

This type of sheet can be widely used in plant, house, storage and simple steel roof. It has advantage of pretty appearance, durable using and so on.



Competitive Advantage

1. ISO/CE certification

2. 20sets/ month

3. high-speed production

4. easy operate, easy maintain

5.One year free warranty
