Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips

Çin Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi
Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips Tedarikçi

Büyük resim :  Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC90

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
color: blue and white type: automatic

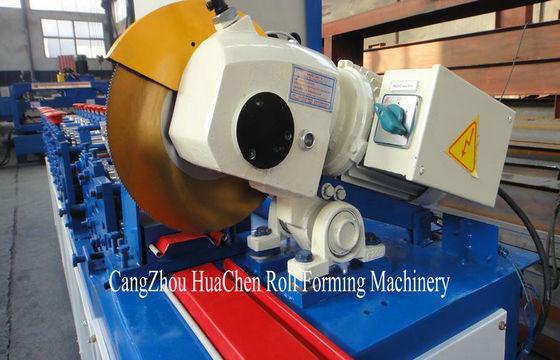

control system: inverter and PLC control cutting method: fly saw cut
power: 3+3 kw per month: 35 sets

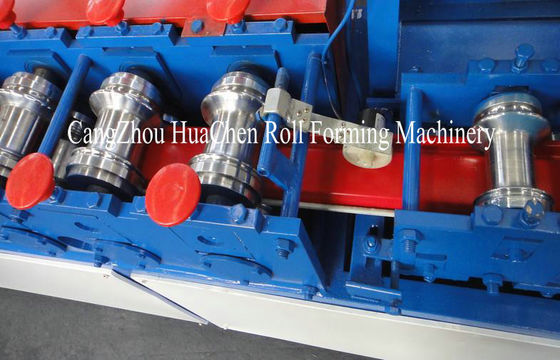

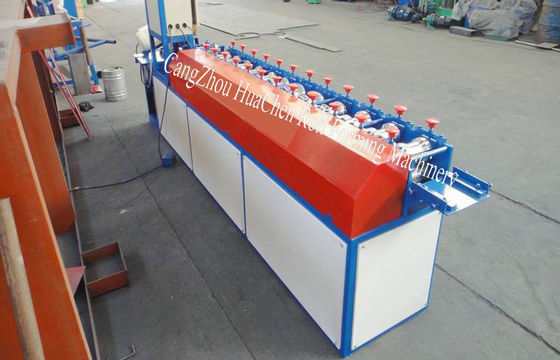

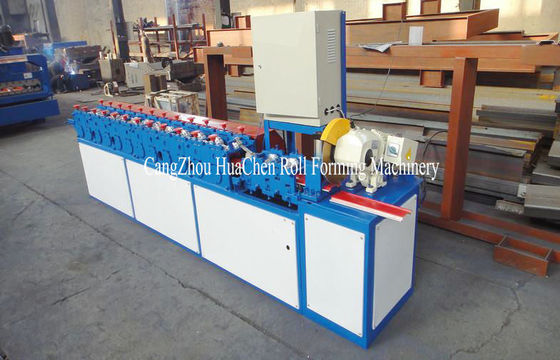

Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips





Quick Detail:Rolling Shutter Door Roll Forming Machine Making Roll-up Door Strips

1. Suitable to process: Color steel plate

2. Width of the plate: 165mm

3. Rollers: 12rows

4. Dimensions: 3.5*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:Rolling Shutter Door Roll Forming Machine Making Roll-up Door Strips

Main parameter

No.

   Main parameter of Rolling Shutter Door Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

165mm

3

Rollers

12 rows

4

Dimensions

3500*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.6mm

7

Productivity

15m/min

8

Diameter of the roller

Φ36 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips



Application

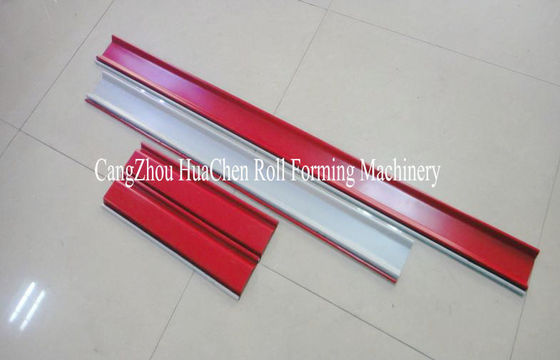

This type of sheet can be widely used as the door of garage, storage and supermarket.

Rolling Up Garage Door Shutter Roll Forming Machine Making Door Strips



Competitive Advantage





1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
