Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm
Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Büyük resim :  Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Ürün ayrıntıları:
Place of Origin: Botou of China
Marka adı: HC
Sertifika: CE ISO
Model Number: JC20-21
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: USD19000-25000 per set
Packaging Details: Standard package in 40 feet container
Delivery Time: 30 work days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 30 sets per month

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Açıklama
Suitable Material: PPGI, GI,Aluminum Thickness: 0.3-0.8mm
Width: cutomized Condition: new
Type: roof tile forming machine Use: roof and wall
Production catacity: 2-10m/min Voltage: 380V or customized
Power: 4+4kw Dimension(L*W*H): 9.1*1.55*1.91m
Weight: 6.5T Warranty: 1 year
Certificate: CE ISO After-sales Service Provided: Engineer available to service machine overseas
Vurgulamak:

sheet metal roll forming machines

,

corrugated roll forming machine

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm





Our firm is engaged in offering a wide array of Steel Roof Tile Roll Forming Machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Steel Roof Tile Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.



Features:

Impeccable performance

Robust construction

Maintenance free

Long functional life



Main Parameters of Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm

1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1250mm or as you required
3 Thickness of material 0.3-0.6mm or as your needs
4 Working speed 8-10m/min
5 Main motor power 4kw with cycloidal reducer
6 Hydraulic station power 4kw
7 Electrical control system PLC control system
8 Shaft diameter 70mm

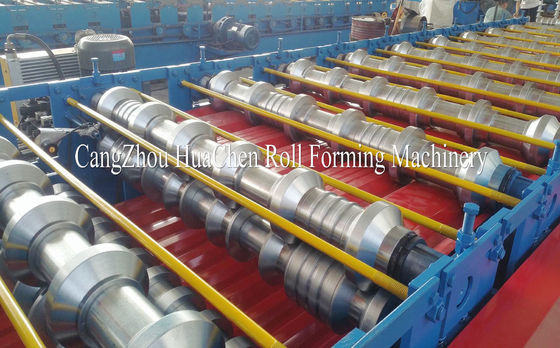

9 Roller station

Up layer:11rows

Down layer:14 rows

10 Material of roller High grade 45# forged steel plated with hard chrome plating
11 Material of cutting Cr12 mould steel with quenched treatment
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Dimension 9100x1500x1910mm
14 Weight About 6.5T
15 Working time Can be 24 hours
16 Workers 1-2 Only











































Please Note: All the parameters can be designed as your requirement.

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 0Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 1

Let me show you how to operate Double Layer Steel Roof Tile Roll Forming Machine

Decoiling→Feeding & Guiding→Roll Forming→Pressing→Cutting→Finished Products To Support Table



Worry about Packing and delivery ?

1.Main Double Layer Steel Roof Tile Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)



2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.



3.One set of machine needs a 40' container to shipping.

Forming Speed 8-12m/min Double Layer Roll Forming Machine Shaft Diameter 76mm 2

Why choose Huachen ?

We do high standard roll forming machine for export about 9 years

We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.

We have machines at more than 80 countries and regions,and keep good business relationship.

we offer one year free warranty and free service for whole life of any machine.



workshop of huachen roll forming machinery

production of roll forming machine

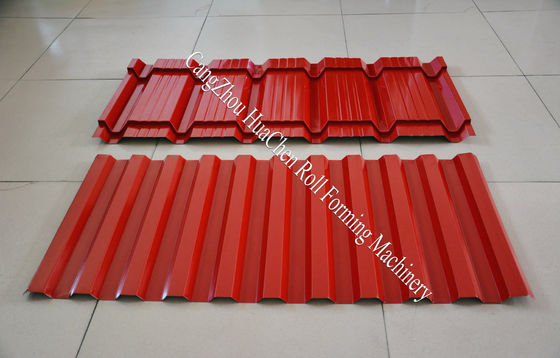

samples for reference
