|Type:||Glazed tile roll forming machine||Suitable Market:||European and America|
|Material:||PPGI GI||Voltage:||380V or customized|

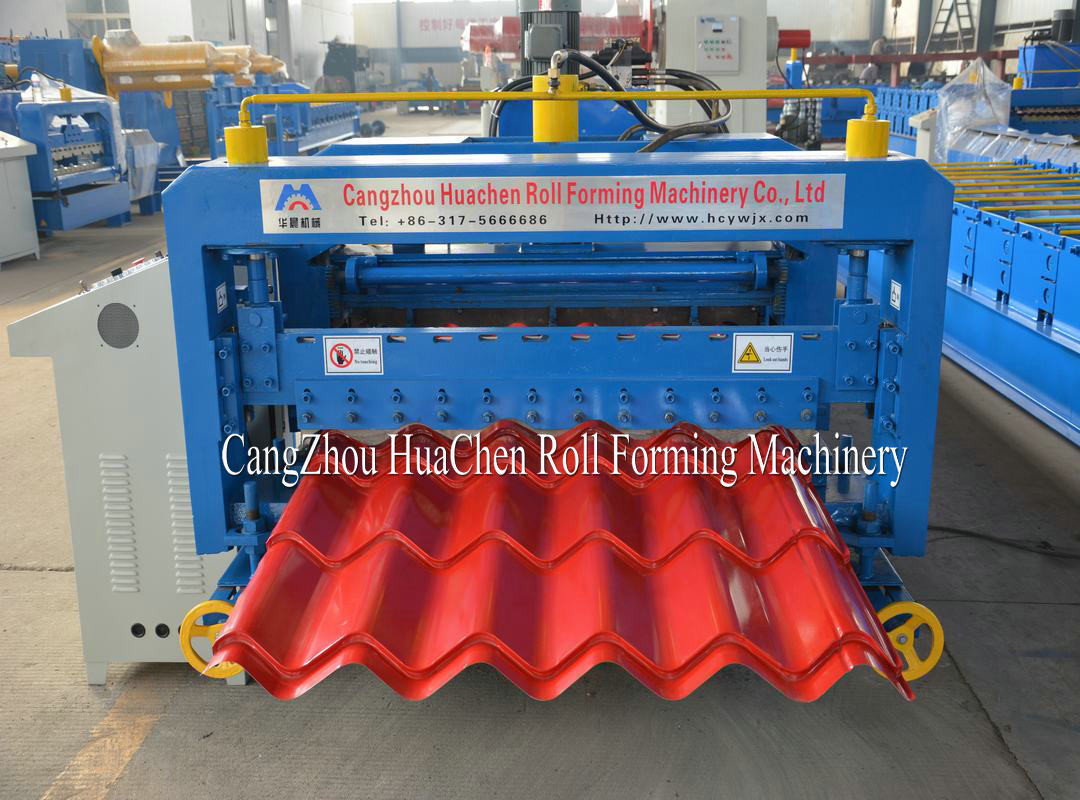

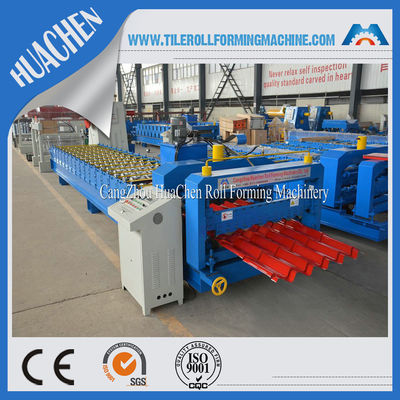

Steel Villa Roof Glazed Tile Roll Forming Machine Blue Double Layer
With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Steel Villa Roof Glazed Tile Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Steel Villa Roof Glazed Tile Roll Forming Machine from us at pocket friendly prices.
Long functional life
|High Speed Blue Double Layer Roll Forming Machine For Roof Cladding|
|1||Suitable material||Color steel sheet ,galvanized steel sheet, aluminium sheet|
|2||Width of material||1250mm or as you required|
|3||Thickness of material||0.3-0.6mm or as your needs|
|5||Main motor power||4kw with cycloidal reducer|
|6||Hydraulic station power||4kw|
|7||Electrical control system||PLC control system|
|10||Material of roller||High grade 45# forged steel plated with hard chrome plating|
|11||Material of cutting||Cr12 mould steel with quenched treatment|
|12||Voltage||380V 3phase 50HZ or as the customer's requirements|
|15||Working time||Can be 24 hours|
Please Note: All the parameters can be designed as your requirement.
Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table
1. Main Steel Villa Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3. One set of machine needs a 40' container to shipping.
