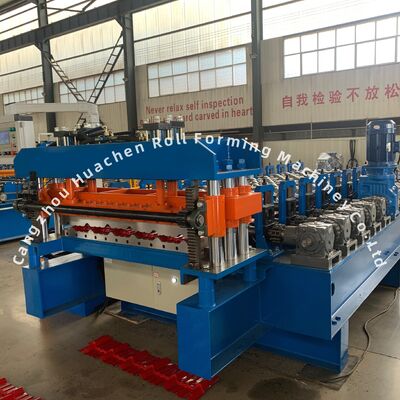

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

Çin CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi
CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi CE Standard Steel Roofing Sheet Forming Machine with Safe Cover Tedarikçi

Büyük resim :  CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

Ürün ayrıntıları:

Place of Origin: Botou of China
Marka adı: HC
Sertifika: ISO & CE
Model Number: HC26

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 set
Fiyat: Email me for good price
Packaging Details: 1.Main Metal Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of ma
Delivery Time: 40 work days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 20 sets per month
Contact Now
Detaylı ürün tanımı
Usage: Roof Production Capacity: 4m/min
Coverage: 1050mm Machine Weight: 4.5T
Shipment: 40GP Delivery Date: 40 days
Warranty: 1 year After sale: Whole life of machine

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover





With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Metal Roof Glazed Tile Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Metal Roof Glazed Tile Roll Forming Machine from us at pocket friendly prices.



Features:

Impeccable performance

Robust construction

Maintenance free

Long functional life



Main Parameters of Steel Roof Glazed Tile Roll Forming Machine



Steel Roof Glazed Tile Roll Forming Machine
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1250mm or as you required
3 Thickness of material 0.3-0.6mm or as your needs
4 Working speed 4m/min
5 Main motor power 4kw with cycloidal reducer
6 Hydraulic station power 4kw
7 Electrical control system PLC control system
8 Shaft diameter 70mm
9 Roller station

11 rows

10 Material of roller High grade 45# forged steel plated with hard chrome plating
11 Material of cutting Cr12 mould steel with quenched treatment
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Dimension 6600x1500x1910mm
14 Weight About 4.5 T
15 Working time Can be 24 hours
16 Workers

1-2 Only









































Please Note: All the parameters can be designed as your requirement.

Let me show you how to operate Steel Roof Glazed Tile Roll Forming Machine

Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table



CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

Worry about  Packing and delivery ?

1.Main Steel Roof Glazed Tile Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)



2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.



3.One set of machine needs a 40' container to shipping.

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover

CE Standard Steel Roofing Sheet Forming Machine with Safe Cover
