1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine

Çin 1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine Tedarikçi

Büyük resim :  1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine

Ürün ayrıntıları:

Place of Origin: CN
Marka adı: HC
Sertifika: CE ISO
Model Number: HC28-18

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 set
Fiyat: USD19000-25000 per set
Packaging Details: Standard package
Delivery Time: 35 days
Payment Terms: D/A, L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month
Contact Now
Detaylı ürün tanımı
Usage: Roof and wall Material: PPGI, GI
Operation: Need 1 person Capacity: 2-10m/min
Weight: 6T Size: 7*1.55*1.91m
Life time: 30 Years Warranty: Whole life

1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine
Detailed Product Description

Workflow of Roll Forming Machine


Un-coiler---- ----straight device---- Roll forming ------Hydraulic cutting—PLC control system----Stacker
1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine
Main Specifications

Coil MaterialThickness0.3-0.8mm
Coil widthCustom-made
Yield Strength250~350Mpa
MaterialColor Steel, GI. Aluminium
Decoiler / UncoilerCoil WidthMax. 560mm
I.D560mm
O.DMax. 1500mm
Roll Forming MachineForming stations16 Stations ( Depend on Profiles )
Roller material GCr15 steel, HRC58-62
Diameter of shaft 70mm
Shaft materialHigh grade 45# steel
Drive typeChain transmission system
Forming speed 5-7m/min
Main power5.5 KW
CuttingCutting typeHydraulic cutting
Cutting Tolerance 10m+/-0.5mm
EncoderOMRON Brand
Electrical controlPLCPANASONIC Brand or Custom-made
InverterDelta Brand or Custom-made
Touch screenDelta Brand or Custom-made
Operation typeTouch screen & Button
Runout TableTable typeSimple nonpower type
FunctionTo support the finished panels


Main Components

Main Roll Forming Machine1 Unit
PLC Computer Control Board1 Unit
Hydraulic cutting1 Unit
Decoiler / Uncoiler1 Unit
Hydraulic Station1 Unit
Runout Table1 Unit


Our Advantage

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 20 Years Experience

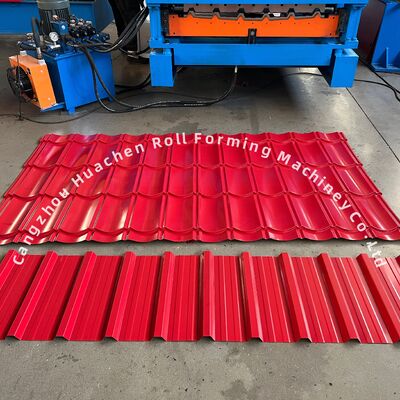

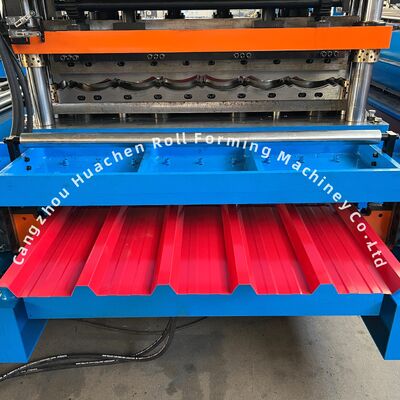

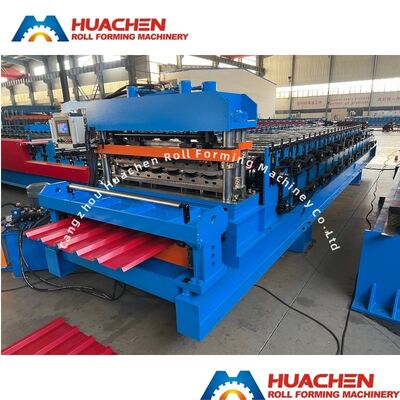

Machine Pictures
1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine1250 mm Galvanized Sheet Roll Forming Machine 5.5kw Power , Tile Steel Making Machine
Introduction
Cangzhou Huachen Roll Forming Machine Co.,Ltd. is one of the rare national and specialized companies. He owns the international outstanding cold bending steel roller designing software: COPRA Software Germany.
Our company is an entity enterprise integrating researching, manufacturing and managing. We adopt advanced CNC numerical control matching software equipment to provide customers with cold bending steel products design and project cost analysis, roller design and count, molding arctic simulation and making various kinds of rigid rollers as well as every kinds of cold bending equipment. Our products are widely used in steel structure industry, decorating and fitting material industry, elevator industry and various projects using pipe industry. It became one of the number enterprises of Cold Bending Industry Association, Construction Metal Structure Association, Decorating and Fitting Material Association attached to the Chinese Steel ISO in 1999.
During many years’ researching work, we have accumulated advances technology and valuable experience. The products manufactured by us have the features of steady and convenient operation, high efficient finished products, lower consumption etc. So they are popular from home and abroad.
Our company always keeps this faith:Quality first, Credit foremost. We cordially welcome all the customers from home and abroad to visit our company and negotiate with each other.
