Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification
Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

Büyük resim :  Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC400
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 13000-29000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification

Açıklama
Vurgulamak:

metal forming machines

,

cold roll forming equipment

Meta Roofing Ridge Cap Cold Roll Forming Machine With CE Certification

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 0Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 1

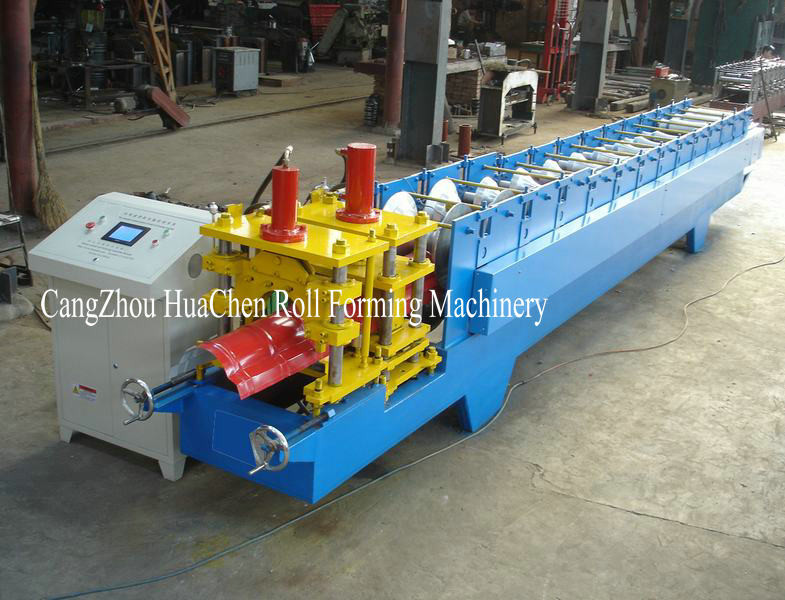

 Cap Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 15 rows

4. Dimensions: 8.1*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application

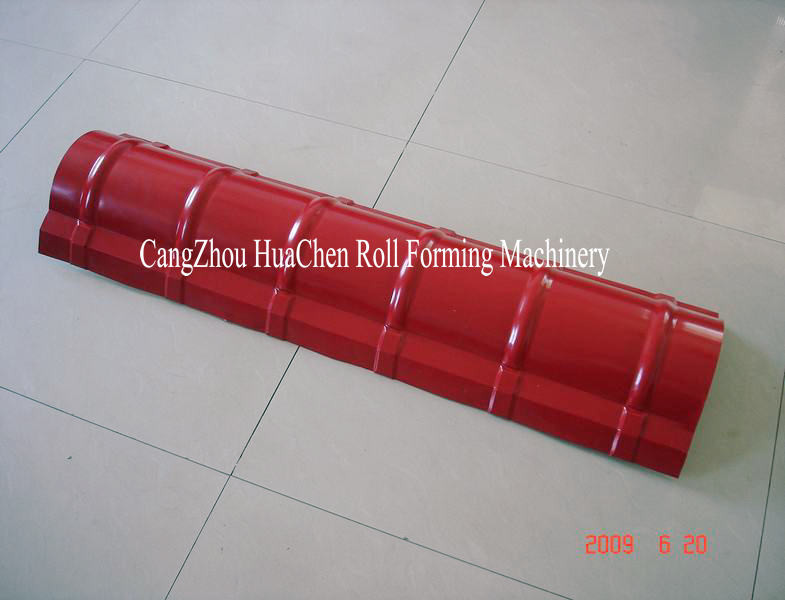

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 2Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 3Civilian Buildings Ridge Cap Cold Roll Forming Machine With CE Certification 4



Competitive Advantage







1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
