Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels
Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Büyük resim :  Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model numarası: HC20-35
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 15000-39000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels

Açıklama
color: blue type: automatic
control system: PLC control cutting method: hydraulic cuting
per month: 30 sets
Vurgulamak:

metal roll forming machine

,

sheet metal roll forming machines

Dual Level Roof Roll Forming Machine For Roof Wall Panels


 Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 0Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 1Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 2


Quick Detail:


1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 10/17 rows
4. Dimensions: 9.7*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control



Description:


 Main parameter

No.

 Main parameter of Double Layer Roof Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :12 rows
Down level :12 rows

4

Dimensions

9700*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

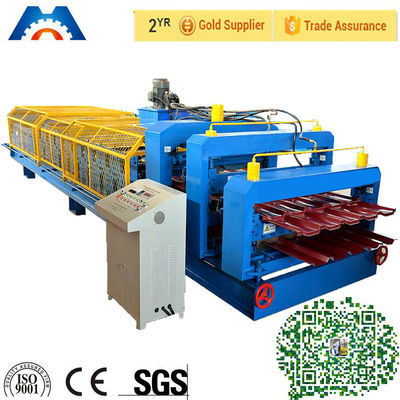

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

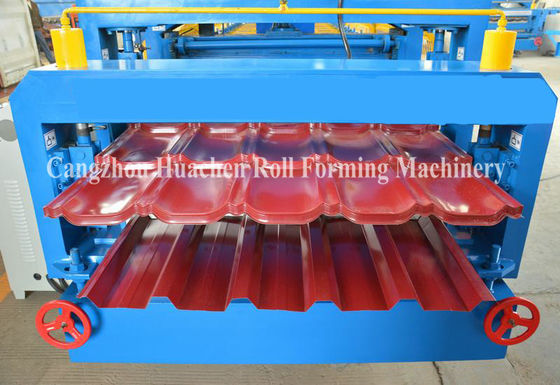

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain

Dual Level Double Layer Roll Forming Machine Roof Panel For Wall Panels 3
