Ürün ayrıntıları:
|
| Vurgulamak: | roof tile roll forming machine,cold roll forming machine |
||
|---|---|---|---|

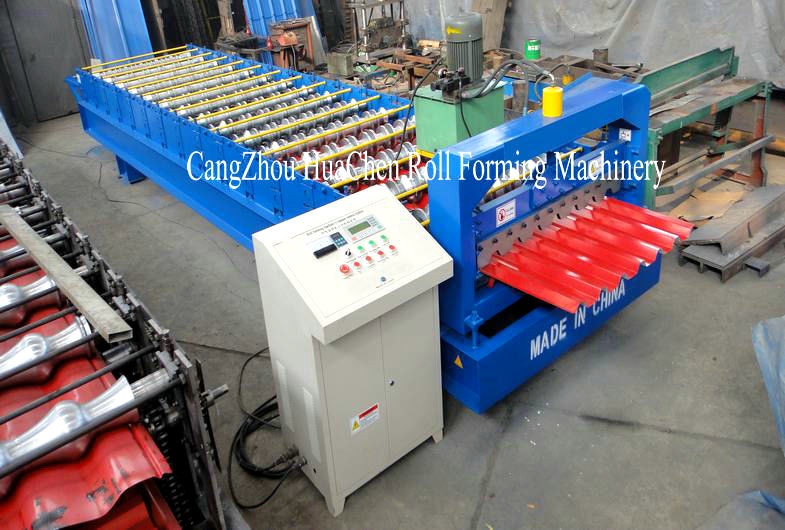

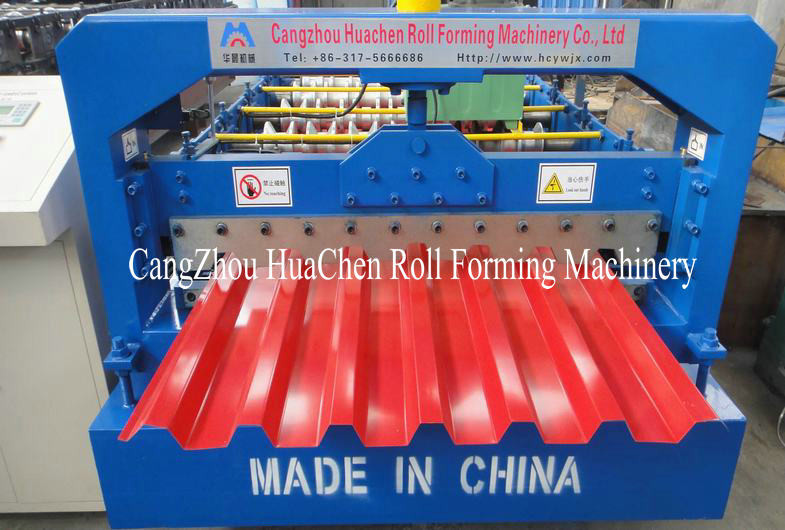

Trapezoidal Roof Panel Roll Forming Machine
Roof Sheet Roll Forming Machine
Description:
Roofing sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roofing sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250 mm |
|
3 |

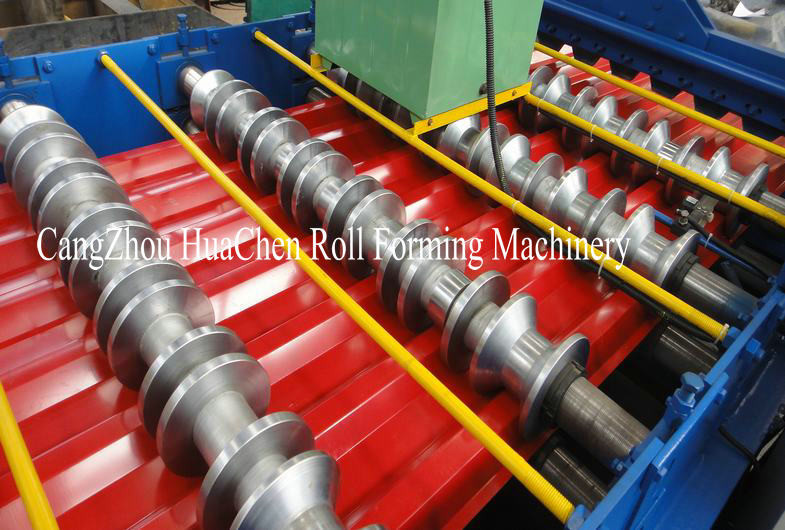

Rollers |
13 ows |
|
4 |
Dimensions |
6600*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

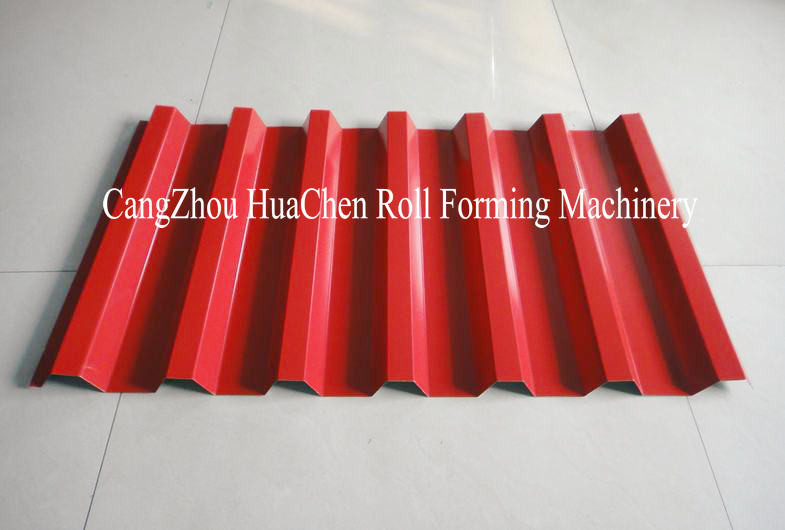

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
