5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity

Çin 5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi
5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi 5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi 5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi 5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi 5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity Tedarikçi

Büyük resim :  5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC120

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı

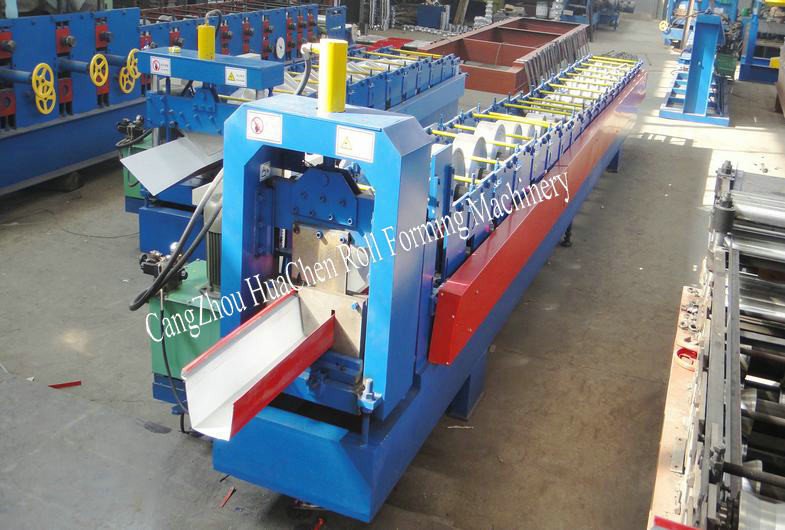

5'' Galvanized steel roof Gutter Roll Forming Machine

5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity



5'' Galvanized steel roof Gutter Roll Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 410mm

3. Rollers: 18 rows

4. Dimensions: 8.6*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



5'' Galvanized steel roof Gutter Roll Forming Machine Main parameter

No.

   Main parameter of 5'' Galvanized steel roof Gutter Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

410 mm

3

Rollers

18 rows

4

Dimensions

8600*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3pha ses

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

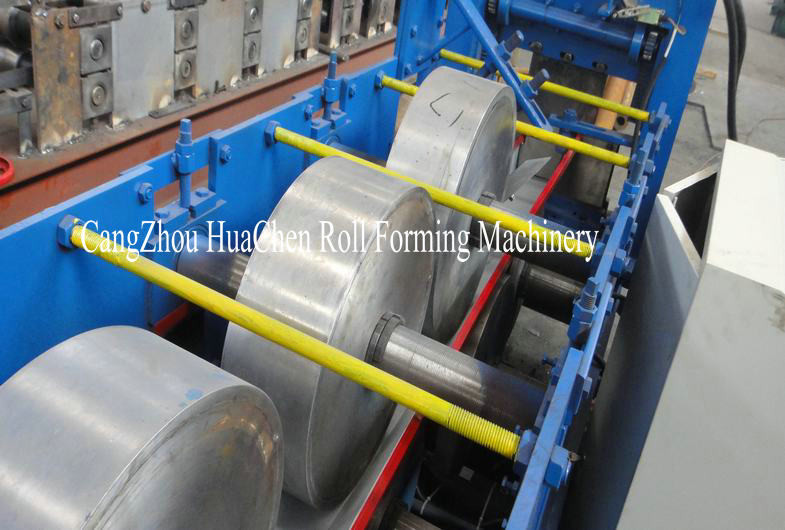

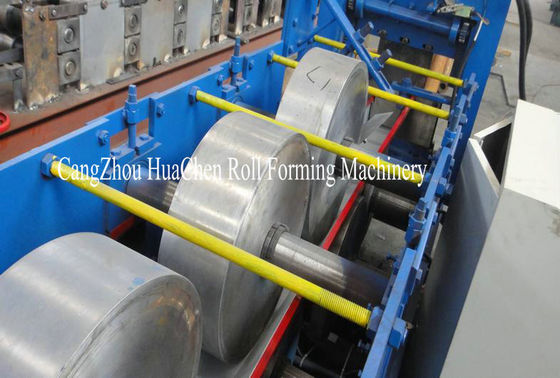

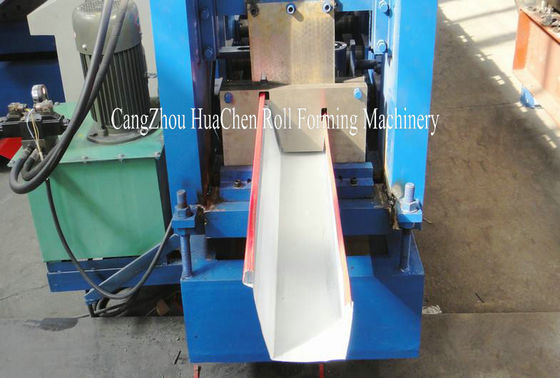

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

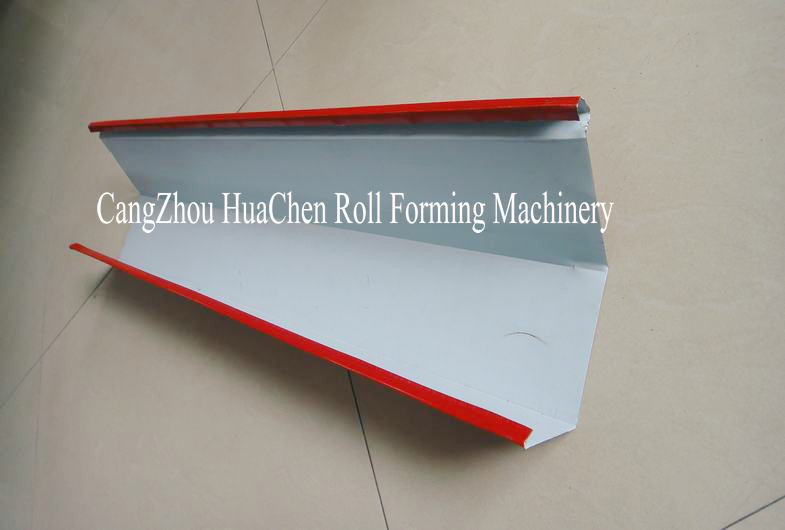

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.

5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity5'' Galvanized Steel Roof Purlin Roll Forming Machine With High Capacity



Competitive Advantage





1.use for villa roofing sculpt

2.beautiful, durable

3.customer customization

4.CE certification

5.professional manufacturer

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
