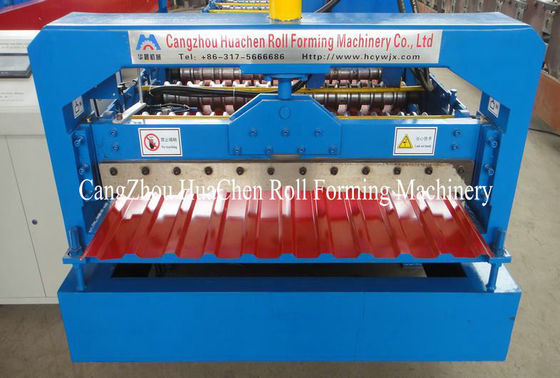

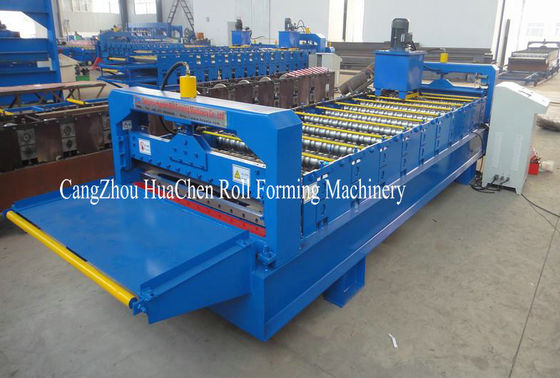

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220

Müşteri yorumları
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220
0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220

Büyük resim :  0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC12
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 8000-29000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220

Açıklama
Usage: wall panel feature: pre-cutting
speed: 20m/min
Vurgulamak:

sheet metal rolling equipment

,

roof tile roll forming machine

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine

0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 00.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 10.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 20.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Coil Width 1220 3

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:1250mm

3. Rollers: 10 rows

4. Dimensions: 5.3*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine Main parameter

No.

   Main parameter of 0.4-0.7mm High Strength G550 Wall Panel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250 mm

3

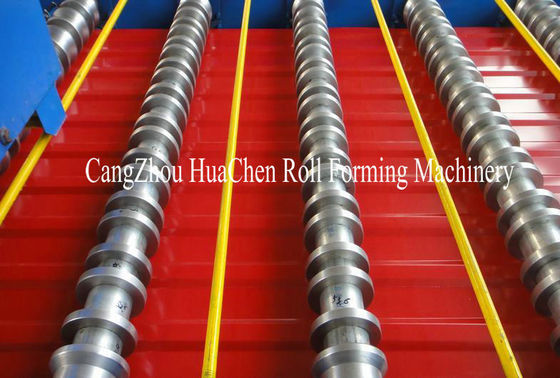

Rollers

10 rows

4

Dimensions

5300*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

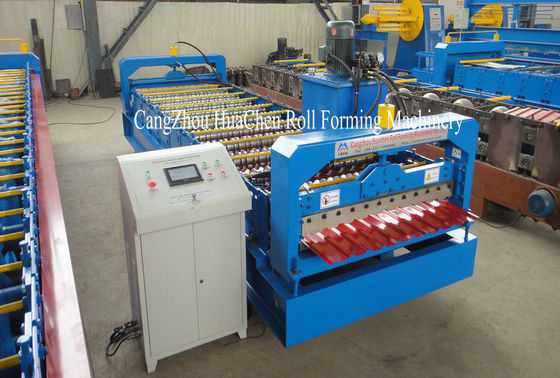

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

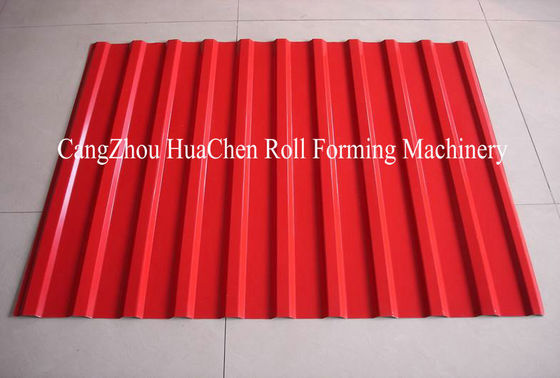

This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support



Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.



Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.

How to make payment ?
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.
Delivery time: 30-45 days after receiving deposit

Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:

1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.

Want a free quotation to make budget ? Just send me inquiry now
