Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Çin Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi
Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Tedarikçi

Büyük resim :  Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Ürün ayrıntıları:

Place of Origin: China
Marka adı: HC
Sertifika: ISO CE
Model Number: HC260

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: USD10000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detaylı ürün tanımı
Material: PPGi GI capacity: 8-10m/min
machine weight: 3.1T rollers: 45# steel
Type: Roll Forming Machine warranty: 12 month
technical support: whole life


Steel Wall Panel Roll Forming Machine Application

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Steel Wall Panel Roll Forming Machine

Main Roll Forming Machine
Roller station
15 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
8-10m/min
PLC system
EURA or customized
Weight
3.1T


Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1TSheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T     Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T
Steel Wall Panel Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1TSheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1TSheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Steel Wall Panel Roll Forming Machine​ Parts

Detailed Images

Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

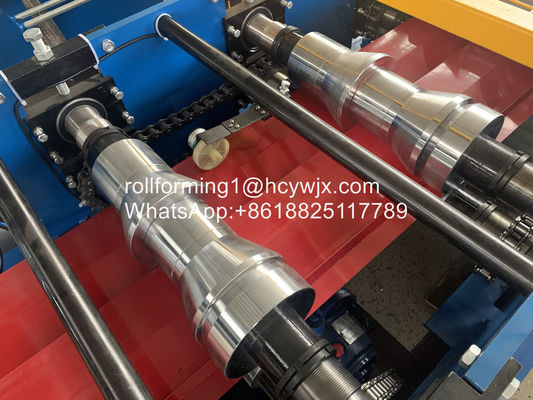

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

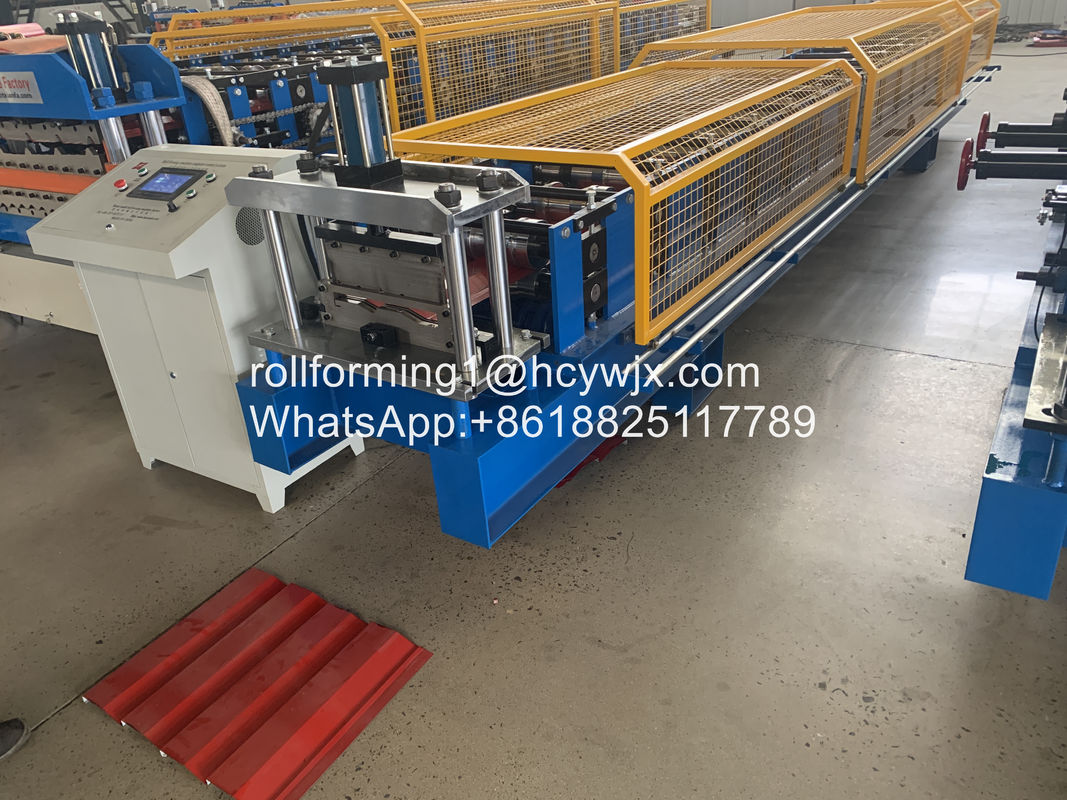

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T
Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T PLC control system

Brand : EURA or Customized
EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC.  In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.

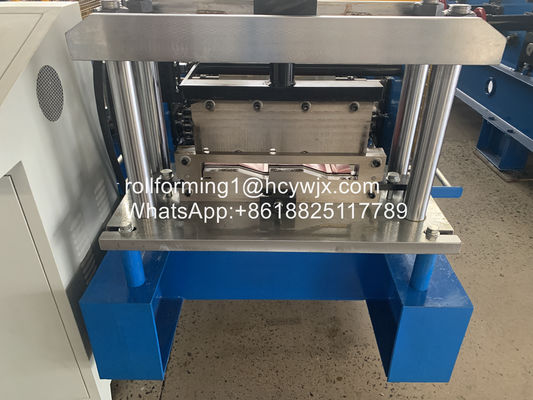

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment

Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T



Our Service



Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1TSheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T

Size: 7400 (L) * 850 (W) * 1510 (H)
Weight: 3.1T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T Sheet Metal Rolling Equipmeant Roof Sheet Making Machine 3.1T
