PLC Guard Rail Roll Forming Machine With GCR15 Bearing Steel For Highways

Çin PLC Guard Rail Roll Forming Machine With GCR15 Bearing Steel For Highways Tedarikçi

Büyük resim :  PLC Guard Rail Roll Forming Machine With GCR15 Bearing Steel For Highways

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC330

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1Set
Fiyat: 29000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
Kapasite: 8-10 m / dak life time: 15 year above
Power: 380V or customized

Description:

This kind of machine adopts new station to increase the firmness; machine adopts gearbox transmission to ensure working more stable; products used in a variety of guardrail, highway guardrail, fence and other livestock farms.



Serice

Before-sales

  1. We will answer the customer asap. (within 24hours)
  2. We can design the machine according to customer’s detail requests

After-service:

  1. In correct operation & maintaining, the machine is guaranteed for one year
  2. If necessary, we will dispatch technicians to install and commissioning, and also our technicians will teach and training the customer’s workers to use the machine better.
  3. We will provide long-term technical assistance.

.



Specifications

Item: Specification: Notes:
1.Information of raw material Suitable material: Galvanized coil
Width: 475 mm
Thickness: 2.5-2.8mm
Yield strength: Q235A
2.Production specification Detailed as the file
3.Power requirement: Main power: 22kw two sets

With inventor

(normal standard)

Cutter power:

15kw(pressure:25mpa)

3 pcs cutter

Speed of machine: 10-15meters/min



5.Hydraulic de-coiler:

Loading: 5tons Main power:3kw
Inner diameter 508mm
Type: Automatic type











6.Machine specification:

Structure: 400I beam



Transform method :

Chains transform

Roll stations:

20 roll stations

(with 7pcs rollers for

leveling diameter:80mm)

Splint thickness: 22mm
Diameter of shaft: 110mm,
Material of shaft: Forged 45# steel
Type of cutting: Saw cutting
Material of roller:

GCr15 with heat treatment:

HRC58-62

Sizes of machine: 15.5*1.0*1.5meters
Material of punching mold: Cr12,hydraulic pre-punching
Sizes of chain: 2.0inch

Processiong Flow

Loading—decoiler—leveling loading—punching—forming –cutting –output

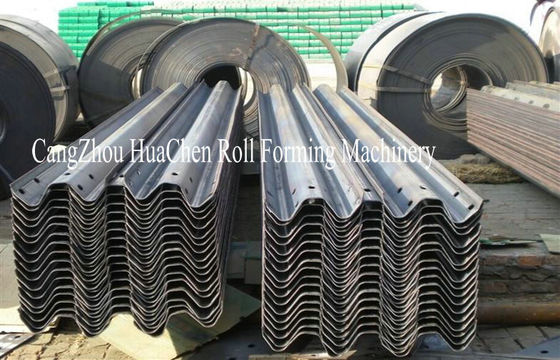

Applications:

The fianl products are High speed road guard rail,standard model (two waves and three waves are both

popular).Its usually used in Govenment project.



PLC Guard Rail Roll Forming Machine With GCR15 Bearing Steel For Highways
