|control system:||PLC control||cutting method:||hydraulic cut|
|working speed:||8-10m/min||per month:||30 sets|

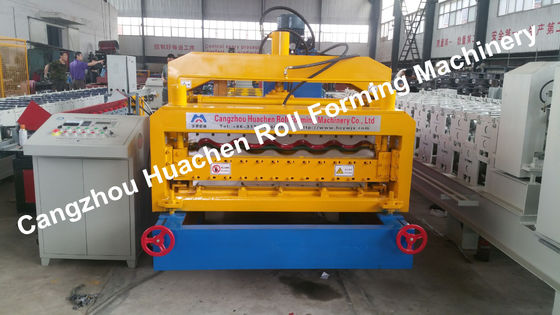

CE Two Profile Panel Double Layer Roll Forming Machine High Speed
Double Layer Roll Forming Machine can separate produce glazed roof and IBR roof in one line or similar two profiles.
The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
1) Main motor power: 5.5kw
2) Drive: Chain
3) Main shaft dia: ￠76mm material: 45# forge steel and quenched
4) Roller material: 45# forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
5) Roll station: 13 groups for upper layer and 11 groups for lower layer
6) Raw material: 0.3-0.8mm
7) Width of raw material: 1220mm
8) Valid width after fromed: 1150mm&1000mm9) Working speed: 10m--15m/min(Exclude cutting time)
10) Length Tolerance: ±2mm
11) Weight of machine: about 8ton
12) Size of machine: About 10500×1800×1900mm L x W x H
13) Color of machine: depend on customer14) Coder: Omron
15) Control: PLC Panasonic, made in Japan. 380V 50HZ
16) Computer operating panel: touching screen
17) Cutting: Hydraulic cutting18) Auto cutting when reach the set length.
19) Hydraulic power: 3KW
20) Blade material: Cr12,quenched 58°-62°
21) Working pressure:16mpa
22) Cutting tolerance: +/- 1.5mm
Uncoiler—Feeding—roll forming--- hydraulic cut to length—output table
Character of main structure
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
available for two profiles roof panel shared one frame, save the cost.
1) Used to produce different roof panels and wall panels
2) Produced panels have such advantages as below:
a) Fine profile
b) Attractive color
c) Agile connecting
d) Slightly curved
3) dual-level roll forming machine
4) We can design and manufacture different type of it to hit your particular profiles
