Electric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , Wall

Çin Electric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , Wall Tedarikçi

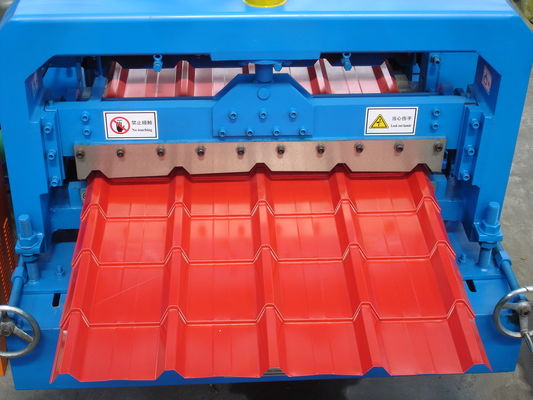

Büyük resim :  Electric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , Wall

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC25

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
type: glazed tile roll forming machine width: 1250
thickness: 0.3-0.6mm capacity: 2-4m/min

Electric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , Wall



Automatic R Panel Roll Forming Machine

A good design makes machine performs outstanding.We have 15 year experience R&D devoted to desing your machine.



Basic Information



Certification: SGS, CE, ISO
Condition: New
Customized: Customized
Usage: Roof, Wall
Transmission Method: Electric
Guarantee Time: First Year Free, Lifetime Services
Machine Type: R Panel Roll Forming Machine
Control System: Mitsubishi PLC & Converter
Main Motor: 7.5kw
Power: 380V, 50Hz, 3pH( or Made as Required)
Operation Language: English or as Per Client`S Required
Rollers Material: No.45 Forged Steel with Hard Chrome
Cutter Material: Cr12 Mould Steel with Quench Treatment
Cutting Style: Automatic Hydraulic Cut to Length
Shafts for Rollers: Grand Twice, ID72mm Solid Steel
Export Markets: Global

Electric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , WallElectric R Panel Metal Roll Forming Equipment , Roll Form Machines For Roof , Wall
Parameters of Automatic R Panel Roll Forming Machine



Item Specification

Raw Material
Pre-painted steel coil & galvanized coils
0.3-0.8
235-550
Roller material 45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min) About 20
Output speed(m/min) About 10
Speed adjusting mode Mitsubishi frequency transformer
Roller drive Decelerating motor + Chain drive
Cutting mode automatic hydraulic cut to length
Cutter material Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 7.5KW
Total power(kw) 9.9 KW

Components of machine



Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set




We customize your machines! To customize machine, we would love to know:


1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler / stacker?

Have no idea about them?
We will be glad to recommend the lacal popular profile for you----Just let us know your country!


Packing


1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 40-50 days after received advanced payment



We garantee:


Machine lifetime service
Technician overseas services.
