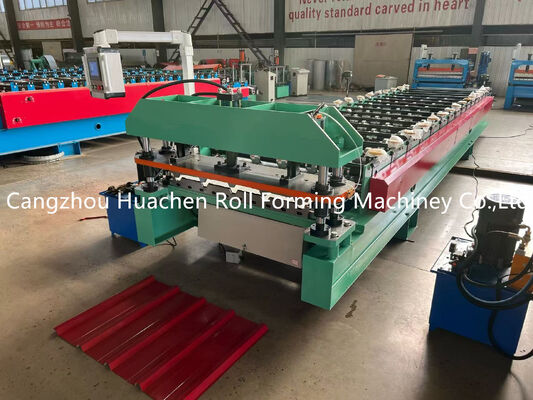

|type:||Colors Metal Sheet Roof Tile Roll Forming Machine For Building Wall And Roof||rollers:||12|
|roller material:||No.45 steel||warranty:||12 month|
|Shaft material:||High Grade No.45 Steel||Main frame:||350mm H-Beam|
|Cutting blade:||Cr12 Mould Steel|
Technical data of steel corrgated roll forming machine
|Suitable material||color steel sheet;0.3-07mm,|
|Power||Main motor power: 5.5 Kw(Depend on final design)|
|Hydraulic station power: 4Kw(Depend on final design)|
|Material of forming rollers||No.45 steel, plated with chrome on surface.|
|Material of cutter,pressing die||Cr12 mould steel with quench treatment, HRC58-60|
|Material of shaft||High quality 45# steel, Roller grinder milling.|
|Controlling system||Mitsubishi PLC & converter|
|Total weight of machine||About 9500KGS|
|Machine’s size||about 18m×1.8m× 1.5m (Depend on final design)|
Layout drawing of machine
Our Roll Forming Machine’s advantages
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.
5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.
6. powerful driving system: big inch train,or gear box driving system.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
We can also customize the products according to customer ' s requirements
