Ana sayfa ÜrünlerÇatı kaplama levha rulo şekillendirme makinesi

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Çin High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting Tedarikçi

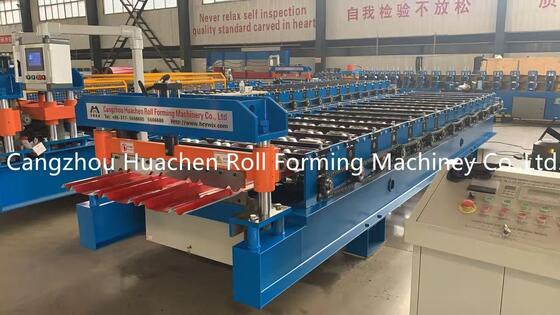

Büyük resim :  High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC36

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
type: High Speed Galvanised Roofing Sheet Roll Forming Machine With Hydraulic Cutting rollers: 17
roller material: No.45 steel warranty: 12 month
Dimension: 5.9*1.3*1.1 m Weight: 3.5T
Voltage: 380V, 50 Hz, 3 phase

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting



Characteristic of Roofing Sheet Roll Forming Machine



1. This Roofing Sheet Profile Roll Forming Machine can rollform galvanised iron roofing panel sheet. After roll formed by this roofing sheet roll forming machine, the surface of iron metal roof sheet panel is very smooth and beautiful without any scratch on the surface of profile sheets.
2. The Roof Sheeting Roll Forming Machine is with fully automatic control system with PLC.
3. Length, quantity of sheets is adjustable.
4. Easy operation: Key in the length and quantity on the control panel.
5. Rollforming process: Decoiler, Rollforming, Cut to length.
6. 1 Year warranty, lifelong time service.
7. We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.



Reference Specifications of Roofing Sheet Roll Forming Machine



  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station of Roofing Sheet Roll Forming Machine: 16 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Working Speed: 0-15 m/min
  • Drive Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton



Compostion of Roofing Sheet Roll Forming Machine





Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Roofing Sheet Roll Forming Machine 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units



Reference pictures

High Speed Galvanised Sheet Metal Forming Equipment With Hydraulic CuttingHigh Speed Galvanised Sheet Metal Forming Equipment With Hydraulic CuttingHigh Speed Galvanised Sheet Metal Forming Equipment With Hydraulic Cutting

Our Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
