Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System

Çin Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System Tedarikçi

Büyük resim :  Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC37

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
type: Automatic Glazed Tile Steel Roof Sheet Roll Forming Machine With PLC Control System rollers: 17
roller material: No.45 steel warranty: 12 month

Detailed Product Description



Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System

Description

Corrugated roof sheet roll forming machine is widely used to produce the metal roof and wall cladding. It is becoming the most popular roof and caldding style in many countries.
The whole line of corrugated roof sheet roll forming machine is composed by decoiler(automatic or manual) for coils from 5ton to 10ton, roll forming machineinclude the guide and feeding device.
cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products. This line can be automaticly running by inputing the length and batches into the PLC control system.
Easy operation: Directly input the data on the touch table screen.
Customers may decide the profile of products.
Quick details:
1. Brand Name: HUACHEN, Certification: ISO, CE.
2. Warranty: one year and life long tracking service.
3. After-sales Service Provided: Engineers available to service machinery overseas.

Specifications

Item Steel Roof Sheet Roll Forming Machine
Coil Material Yield Strength 350-500 MPa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 440-530mm
Steel roof forming machine Diameter of shaft 76mm
Shaft material High grade 45# steel
Cutting Cutting power 4 KW (Hydraulic station)
Cutting Tolerance 10m+/-1.5mm
Electrical control Inverter Siemens Brand

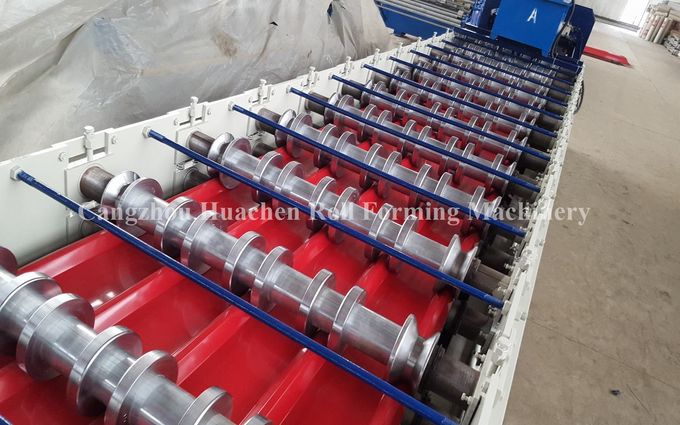

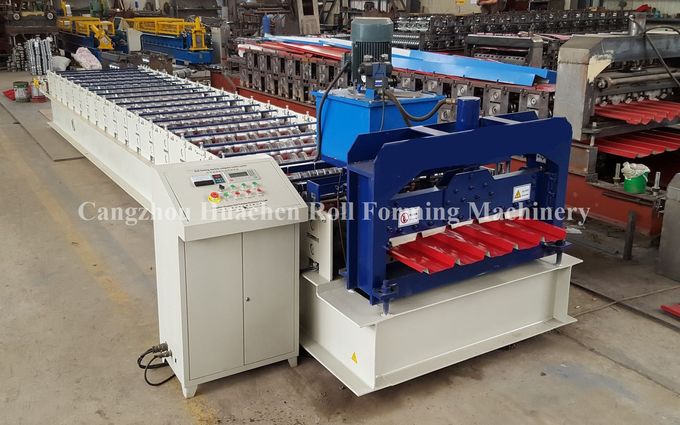

Steel Roof Roll Forming Machine Pictures
Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control System

Automatic Glazed Tile Cold Roll Forming Equipment With PLC Control SystemAutomatic Glazed Tile Cold Roll Forming Equipment With PLC Control System

The Equipment list is as follows:


Compenent Qty Remark
Decoiler 1 Loading the coil material
Feeding guide device 1 Feeding and guide the material sheet
Main roll forming machine 1 Roll form the metal sheet

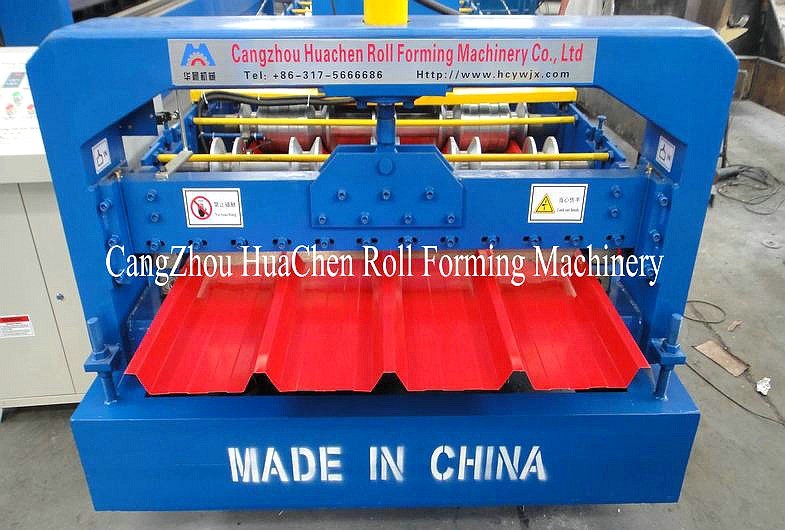

Hydraulic Cutting blade 1 Cutting the formed products
Hydraulic Station 1 Provide power for cutting
PLC control cabinet 1 Electrical control system
Output table 1 Load the finished products


Application

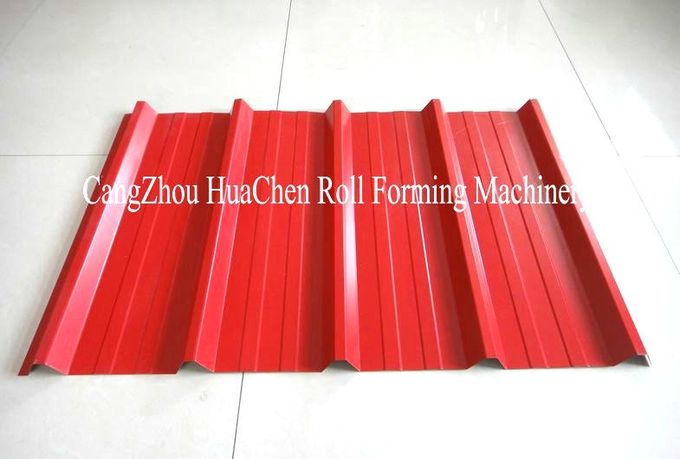

Construction, Store Fixture, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, trapezoidal panel, corrugated roofing, corrugated panel, metal roof; steel roof.

Advantages

1. We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, debugging and maintenance service to all customers. 2. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
