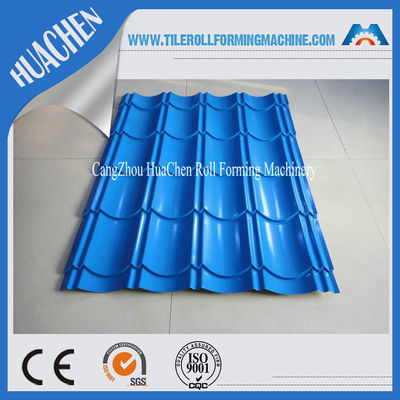

Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine

Çin Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine Tedarikçi

Büyük resim :  Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC28

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
Type: Tile Forming Machine Warranty: 18 month
Thickness: 0.3-0.8mm Shaft: 76mm

Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine

Product Description



Machine DescriptionQuantityDelivery timeContainer TypePrice(FOB TIANJIN)
Glazed tile machinery Made in china


1 SET

45 working days
after receiving deposit


One 40GP


USD14500---19500


Glazed Tile are widely used in building: the steel-structured large-scale warehouses, plants, upermarkets,
shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and
different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers'
requests.

Glazed tile machinery Made in china Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→
Products receiving
Color Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former MachineColor Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former MachineColor Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former MachineColor Steel Glazed Tile Roll Forming Machine / Roof Wall Cladding Roll Former Machine

Product nameGlazed tile machinery Made in china
NO.ItemsParametersRemark
1

Suitable

Material

TypeGI/PPGI/AL
  Width1000/1200/1220/1250mmCustom
  Thickness0.40-0.70mm
2

Product
Specifications

LengthAny length
  Length Tolerance±2mm/6m
3Working Speed25 m/min (10 piece per min as 8 feet per piece)Standard machine
4Control SystemMitsubishi/Siemens PLC& transducerCustom
5Total PowerAbout 12KW
6Total WeightAbout 10.5TUp to final design
Our Services



1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also

train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary

things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
