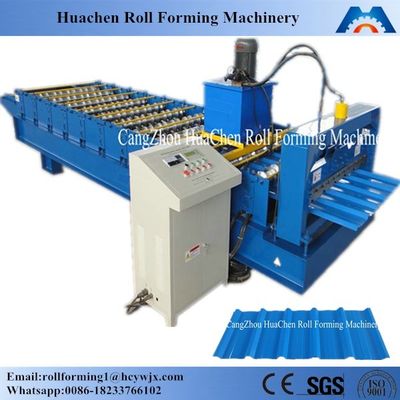

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency
Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency
Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Büyük resim :  Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Ürün ayrıntıları:
Marka adı: HC
Sertifika: ISO CE
Model numarası: HC25
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: USD8000-15000
Ambalaj bilgileri: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Teslim süresi: 30 work days
Ödeme koşulları: D/A, Western Union, L/C, T/T
Yetenek temini: 20 sets per month

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency

Açıklama
Menşe yeri: Hebei, China (Mainland) Production: 8-12m/min
Power(W): 4+4kw Dimension: 7*1.5*1.5m
Weight: 4T Thickness: 0.3-0.8mm
Vurgulamak:

roof tile roll forming machine

,

roof panel roll forming machine

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency



Supply various roof/wall profiles

Accept customized design

Machine working life could be more than 10 years

Supply technical support for all life



Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency 0Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency 1Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency 2

Product Description



Working flow:

Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production



High efficiency corrugated galvanized roofing sheet roll forming machines producer





Technical specifications:



Item Parameter

Suitable

Material

Type PPGI/GI/PPGL
Thickness 0.3-0.8mm
Wide 914mm/1000mm/1200mm/1250mm/1450mm
Yield Strength 230~550MPA

Product

Specs

Profile Customized profile
Effective width Base on customized profile
Length Any length

Power

Specs

Voltage 380V/3PH/50HZ, accept customization
Main Motor 4kw
Hydraulic motor 3kw
Hydraulic pressure 10-12MPa

Machine

Specs

Forming steps number 13~20 steps
Shaft Material 45 # steel tempered,Φ70~90mm
Roller Material 45 # steel chrome coated
Main machine body 350# H steel welded
Transmission Chain and Sprocket, chain size 1 inch
Wall Plate 16mm thickness
Blade material Cr12 mould steel with quenched treatment 60-62°
Forming Speed 8-12m/min for standard solution
Cutting system

Length-set cutting after roll formed

and could pre-cutting to switch off the coils

Control System Delta PLC and Inverter
Manual decoiler

Max width of coiling: 1000~1450mm

Max weight of loading: 5000kg

Output Supporter 2 Pcs Simple Supporter
Dimension of the machine 7.5m~11m×1.5mm×1.2m
Weight of the machine 3.5 ton ~6 ton
