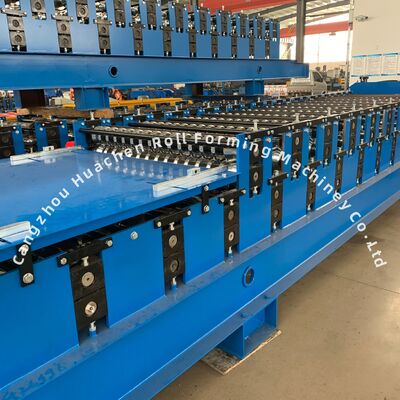

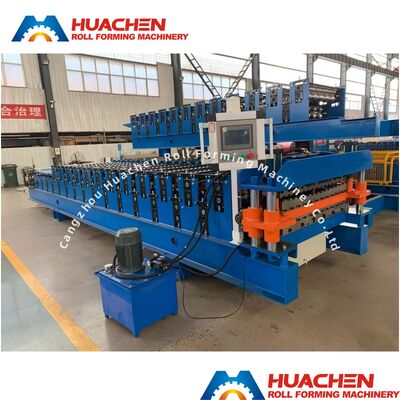

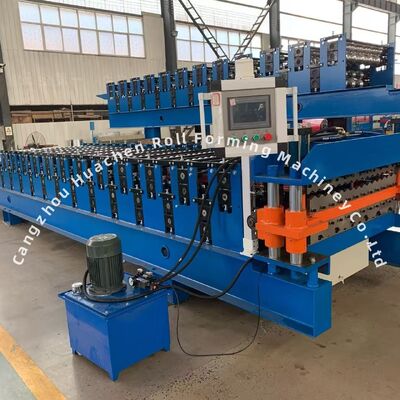

Professional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming Machine

Çin Professional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming Machine Tedarikçi

Büyük resim :  Professional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming Machine

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model Number: HC18-30

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
color: blue Shaft material: High Grade No.45 Steel
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets



Professional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming Machine



Quick Details

Condition: New Type: Tile Forming Machine,roll forming machine Tile Type: Colored Steel
Use: roof and wall Production Capacity: 8-12m/min Place of Origin: Hebei China (Mainland)
Brand Name: Roll Forming Machine Model Number: Roll Forming Machine Power(W): 3kw
Voltage: 380V 50HZ 3Phase Dimension(L*W*H): 6500*1500*1200mm Weight: 3.2tons
Certification: CE@ISO Warranty: one year After-sales Service Provided:
Engineers available to service machinery overseas
feeding material:
color steel panel aluminum plate galvanized panel
frame: 250H steel the thickness of middle plate: 14mm
roller stations: 13 rows the diameter of roller: 75mm the thickness of the panel: 0.2-0.8mm
the material of roller: 45# steel OEM: yes roll forming machine:
used metal roof panel roll forming machine

Packaging & Delivery

Packaging Detail: 1. Tighten to container with steel wire rope and welded machine with container by angel iron 2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic) 3. PLC contral system and motor pump are packed with water proof paper coverage
Delivery Detail: 15-20 days after getting advance payment

Specifications

Roll forming machine
Material:color steel sheets
Machine speed:8-12m/min
18 years experience
CE&ISO

roll forming machine manufacturers



WE CAN DESIGN THE MACHINE AS YOUR SAMPLE OR PROFILE



Technical Parameters (some depend on the final design)
1 Style used metal roof tile making machine
2 Machine dimension (mm) 6500*1500*1200
3 Total wight (Kg) 2500
4 Forming steps 13 rows
5 Forming speed (m/min) 8-12
6 Hydraulic station power(Kw) 3
7 Diameter of shaft (mm) 75
8 Hydraulic pressure(MPa) 18-20
9 Electric condition 380V/3Phase/ 50HZ
10 Suitable to process Color steel plate(G330 or G350)
11 Decoiler max capacity (Kgs) 10000
12 Control system PLC
13 Raw material thickness (mm) 0.2-0.8
14 Effective width(mm) 750
15 Material width(mm) 1000
16 Main application tile roof



Customized Double Layer Roof Tile Roll Forming Machine :

Decoiler 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic pressing system 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set



Customized Double Layer Roof Tile Roll Forming Machine Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting product to run out table

Hot sale Customized Double Layer Roof Tile Roll Forming MachineProfessional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming MachineProfessional Double Layer Roll Forming Machine / 380v Wall Panel Roll Forming Machine
