Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Çin Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting Tedarikçi

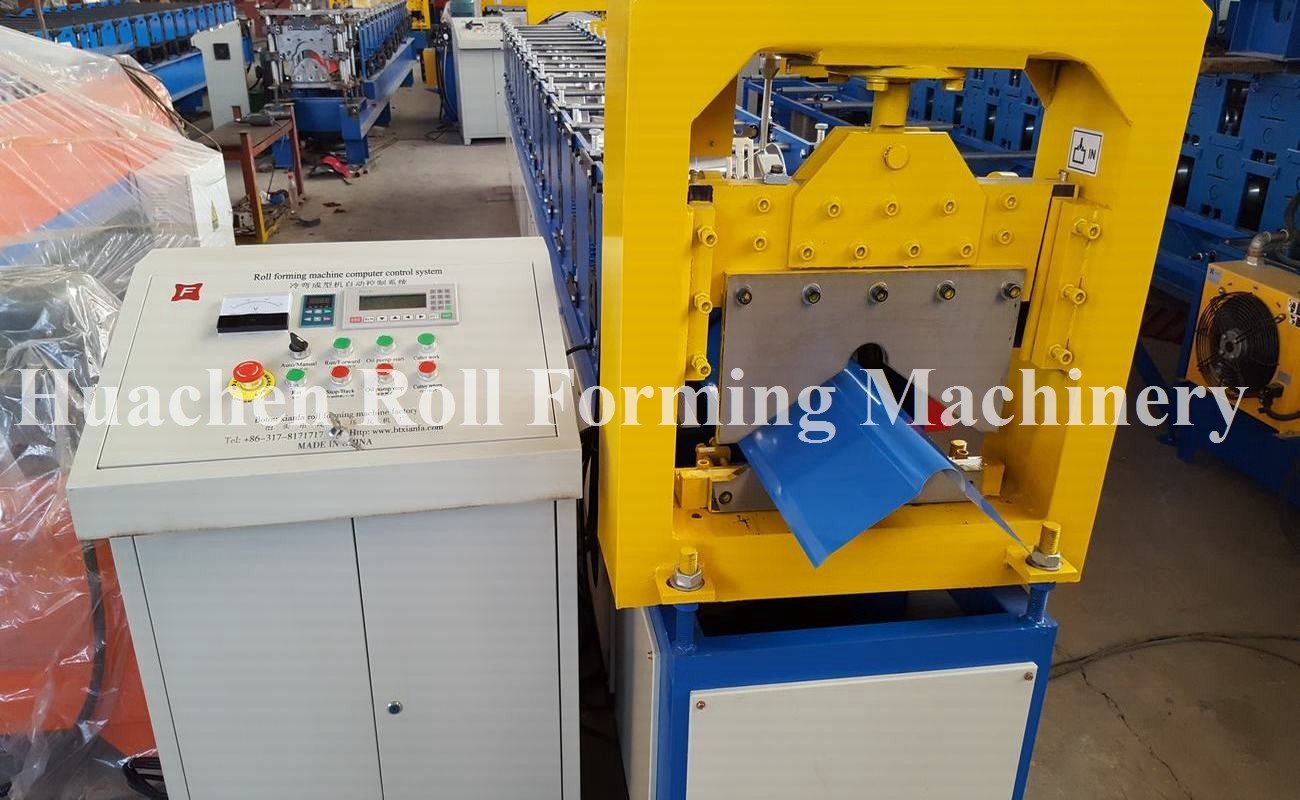

Büyük resim :  Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC280

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 13000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı





Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting



Description



The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas. The ridge caps produced by this machine look beautiful , elegant and noble .They are widely used as the roof of garden ,factory ,hotel, exhibition center and villa ,etc .



Specifications


  • Material thickness: 0.3-0.6mm for Roof Ridge Cap
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 7.5 Kw
  • Forming Station: approx 15 ( depend on profile drawing )
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton
Automatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic CuttingAutomatic Roof Tile Ridge Cap Roll Forming Machine , Hydraulic Cutting

Main Components


  • Decoiler ---------------------------------------------=- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • Main roll forming machine --------------------------- 1 Unit
  • Hydraulic pressing device --------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station -------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- ---1 Unit


Working Flow


Decoiler --- Fedding Guide --- Roll Forming --- Pressing --- Cut-to-length --- Run out table
