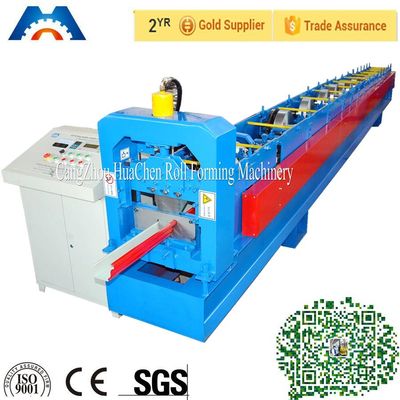

Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed

Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed
Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed
Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed

Büyük resim :  Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC285
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 25600-48900USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed

Açıklama
Type: Tile Forming Machine Power(W): 4+4kw
Warranty: 1 year
Vurgulamak:

sheet forming machine

,

metal roll forming machines



Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed

Product Description



1. The advantage



gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

2.Main parameter



No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 200-600mm
3 Rollers 14-16rows
4 Dimensions 8.6*0.8*1.2m
5 Power 4+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller 52mm
9 Weight About 4.5 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control
15 Side panel of machine 14mm
16 Main structure of the machine 300 H steel
17 Weight About 4.5 T

3. some pictures of

Solid Shaft Gutter Machine With Chrome Covered Rollers

Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed 0Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed 1Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed 2Portable Gutter Roll Forming Machine , Cold Roll Forming Equipment High Speed 3

Components and Technical Specification



1. Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm



2. Feeding Table



Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.



3. Hydraulic System



Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.



4.Computer Control Cabinet



The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

PLC:EURA



5.Cutting System:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6.Output Table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
