Automatic Glazed Tile Roll Forming Equipment 1250 Width Step Tile Making Machine

Sertifika
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
iyi kalite Çatı kaplama levha rulo şekillendirme makinesi satış için
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

Automatic Glazed Tile Roll Forming Equipment 1250 Width Step Tile Making Machine

Çin Automatic Glazed Tile Roll Forming Equipment 1250 Width Step Tile Making Machine Tedarikçi

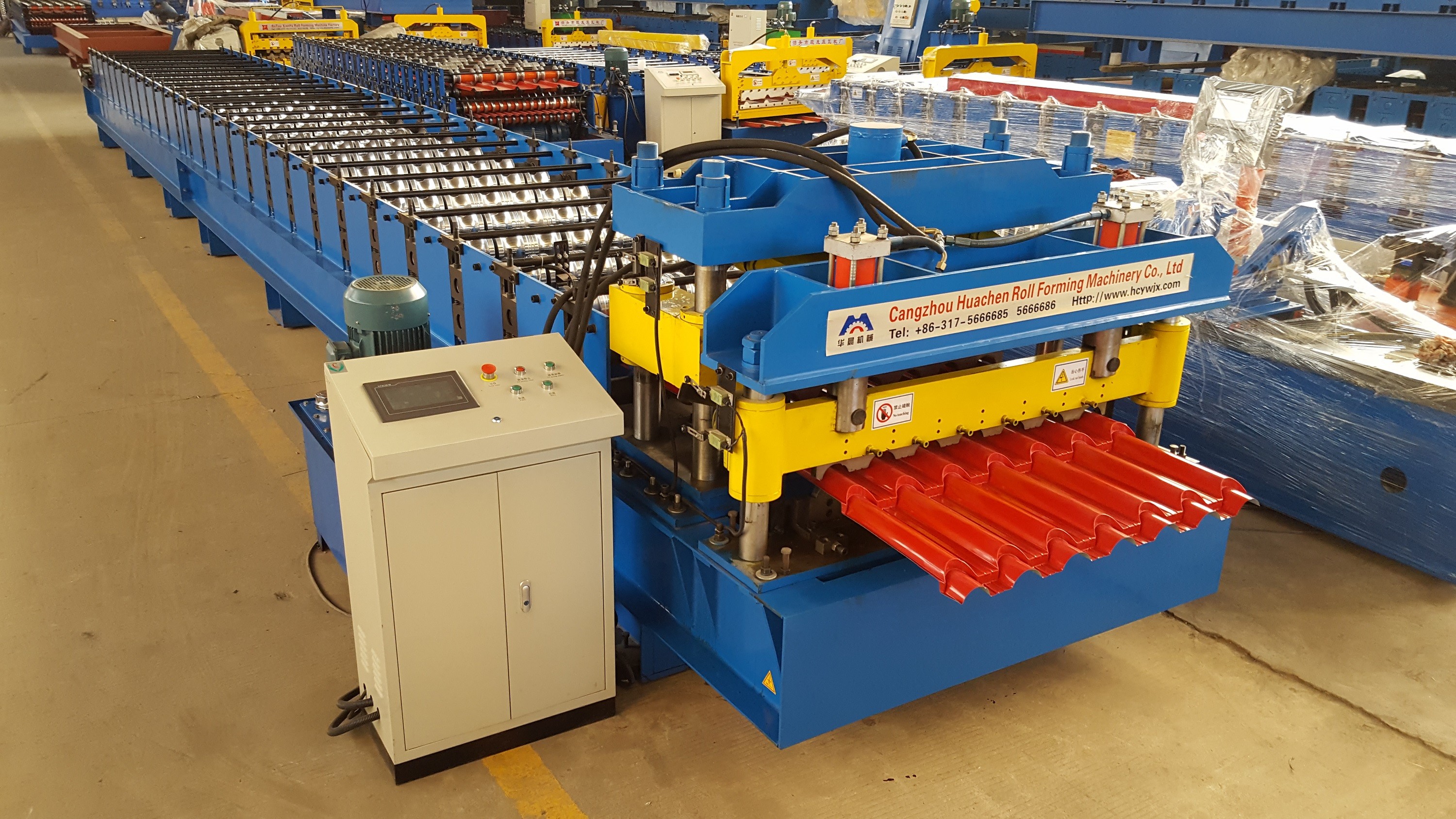

Büyük resim :  Automatic Glazed Tile Roll Forming Equipment 1250 Width Step Tile Making Machine

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC30

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
type: glazed tile roll forming machine width: 1250
thickness: 0.3-0.6mm capacity: 2-4m/min
Dimension: 7.5*1.5*1.2m life time: 10 years
Weight: 6.5T

After Glazed tile roll forming machine step tile making machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.

Automatic Glazed tile roll forming machine step tile making machine from China



Detailed Parameters of Glazed tile roll forming machine step tile making machine

No. Glazed tile roll forming machine step tile making machine
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 1250mm or as you required
6 Thickness of material 0.3-0.6mm or as your needs
2 Working speed 10-20m/min
3 Main motor power 4kw with cycloidal reducer
4 Hydraulic station power 4kw
5 Electrical control system PLC control system
7 Shaft diameter 70mm
8 Roller station
10 Dimension 9200x1500x1910mm
11 Weight About 6.5 T
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Material of roller High grade 45# forged steel plated with hard chrome plating
14 Material of cutting Cr12 mould steel with quenched treatment
15 Working time Can be 24 hours
16 Workers 1-2 only

Please Note: All the parameters can be designed as your requirement.

Let me show you how to operate Glazed tile roll forming machine step tile making machine

Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table

Automatic Glazed tile roll forming machine step tile making machine from China

Not interested in this design ? Here are other profiles for your reference.

Automatic Glazed tile roll forming machine step tile making machine from China

Worry about Packing and delivery ?

1.Main Glazed tile roll forming machine step tile making machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)

2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.

3.One set of machine needs a 40' container to shipping.

Automatic Glazed tile roll forming machine step tile making machine from China

Why choose Huachen ?

We do high standard roll forming machine for export about 9 years.

We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.

We have machines at more than 70 countries and regions,and keep good business relationship.

we offer one year free warranty and free service for whole life of any machine.

Automatic Glazed tile roll forming machine step tile making machine from ChinaAutomatic Glazed tile roll forming machine step tile making machine from ChinaAutomatic Glazed tile roll forming machine step tile making machine from ChinaAutomatic Glazed tile roll forming machine step tile making machine from China

Automatic Glazed tile roll forming machine step tile making machine from China

Automatic Glazed tile roll forming machine step tile making machine from China
