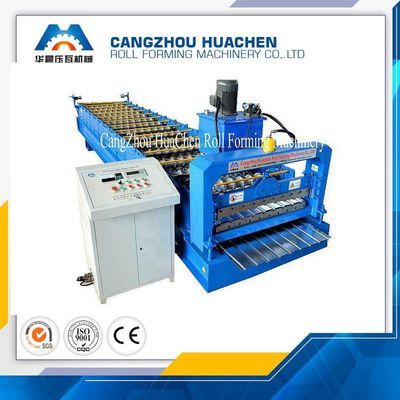

Ürün ayrıntıları:
|
| Model numarası: | Aluminum Wall Panel Roll Forming Machine | Suitable Material: | HRB60 or equivalent |
|---|---|---|---|
| Material Thickness: | 0.2-0.6mm | Roller: | High grade 45# steel |
| Vurgulamak: | sheet metal rolling equipment,roof tile roll forming machine |
||
1. What is the application for this Aluminum Wall Panel Roll Forming Machine?
The steel panel produced by this machine is beautiful and durable. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
2. What is the working flow for Aluminum Wall Panel Roll Forming Machine, can you explain it for me?
decoiling-sheet feeding-roll forming-length measuring-stop and cutting-panel to product stand
3. What is technical details?
| a. General | |
| Model Number | Aluminum Wall Panel Roll Forming Machine |
| Suitable Material | HRB60 or equivalent |
| Material Thickness | 0.2-0.6mm |
| Sheet Length | Any length as you want, It is controlled by PLC which can ensure the accuracy within ±1mm. |
| Cutting | Automatically stop and cut when it comes to the set length. |
| Roller | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate | 16mm. We use thicker plates to ensure stability of our products. |
| Shaft |
Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning. high rigidity, hard to deform. |
| Cutting Blade |
Ture Cr12, hardness HRC60-62. Treating process: heat treatment- pane abrasion-wire electrode cutting. |
what makes us better than others?
| 1. Professional |
15 years' rich experience! a.Specialized in Aluminum Wall Panel Roll Forming Machine since 1998; b.Keeping improving the quality. |
| 2. Low price |
Save your money from every part! a. Low labor cost; b. Convenient transportation; c. Complete supporting industries. |
|
3. Fully automatic, easy operation |
a. Equiped with PLC : Ensuring high accuracy and easy operation. b. You just input the length of sheets, and how many piece you need, then the machine will start production according to your requirement. c.Steady Performance. |
| 4. OEM / ODM |
Customers’design, color & logo are also accepted! Our outstanding experts and skilled workers are devoting their hard working, to ensure the machine with high quality. |
| 5. TWO-Years warranty, whole life service. |
Keep troubles far away from you! Within the TWO-YEARS period, we could offer the replacement parts to the client free of charge for any parts damaged due to quality problems . |
