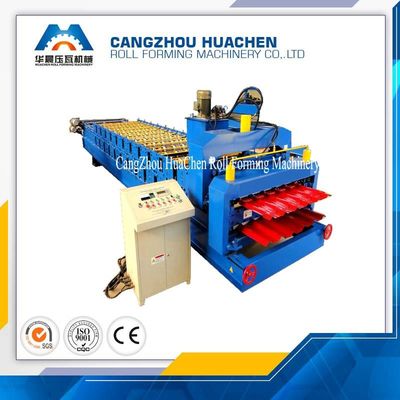

Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment

Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment
Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment

Büyük resim :  Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model numarası: HC27-32
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 12000-17000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment

Açıklama
Power(W): 4+5.5kw Warranty: 18 month
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
Vurgulamak:

metal roll forming machine

,

sheet metal roll forming machines

Color sheet double layer roll forming machine Double deck roll machine by bello lin

Color sheet double layer roll forming machine Double deck roll machine by bello lin Applicable to commercial facade, garage, shopping malls, hospitals, factories and mines enterprises and so on public place or residence. Especially it was large and inconvenient installation ground body place convenient and quick open.



Product Description

Double layer roll forming machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm Down level 95 mm
◊ Forming station: Upper level 12 stations. Down level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment 0Color Sheet Double Layer Roll Forming Machine Double Deck Roll Forming Equipment 1
