Custom Design Stud Track And Omega Metal Cold Roll Forming Machine With Capacity 20-40 M/Min

Çin Custom Design Stud Track And Omega Metal Cold Roll Forming Machine With Capacity 20-40 M/Min Tedarikçi

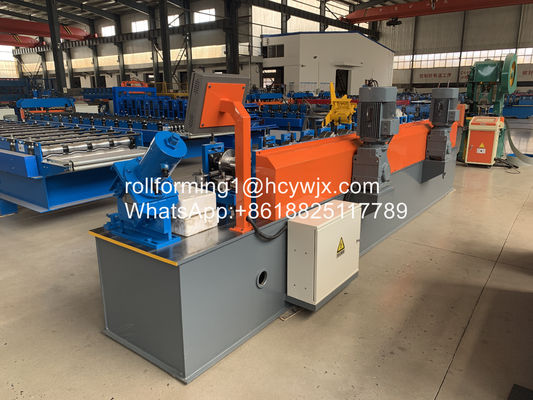

Büyük resim :  Custom Design Stud Track And Omega Metal Cold Roll Forming Machine With Capacity 20-40 M/Min

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC35

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 12000-38000
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
Usage: Stud and track Type: Cold roll forming machine
Thickness: 0.5-1mm Capacity: 20-40m/min
Power: 4.5+3kw Thickness of the plate: 0.3-0.6 mm

Product Description



1. The Product Description of cee purlins



(1). Brief Introduction

The purlin made by C Purlin Roof Steel Profile Roll Forming Machine is widely used in the main body stress

structure of the large and medium-size construction, such as the plant, the warehouse, locomotive shed,

hangar, exhibition building. it is known as economic and high efficient building material.

The steel C purlin has following features:
a. Light weight, low cost;
b. Easy to operate: the purlin can be formed and punched according to your actural need;

and it can be installed directly.



(2). Working Flow of Roll Forming Machine

Coil decoiling-Coil feeding-Leveling-Roll forming-Punching(optional)-Length measuring-Sheet

cutting-Sheet surpporting

Construction Customized Superior quality CE c stud roll forming machine



(3).Technical Detail



A. General

Suitable Material Hot rolled strip steel, Q235 or equivalent
Material Thickness 1.5-3.0 mm
Material Width 175-465mm
Dimension About 10.0*1.2*1.75m(L*W*H) , as per the drawing
Working Space About 20.0*2.7m(L*W)

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

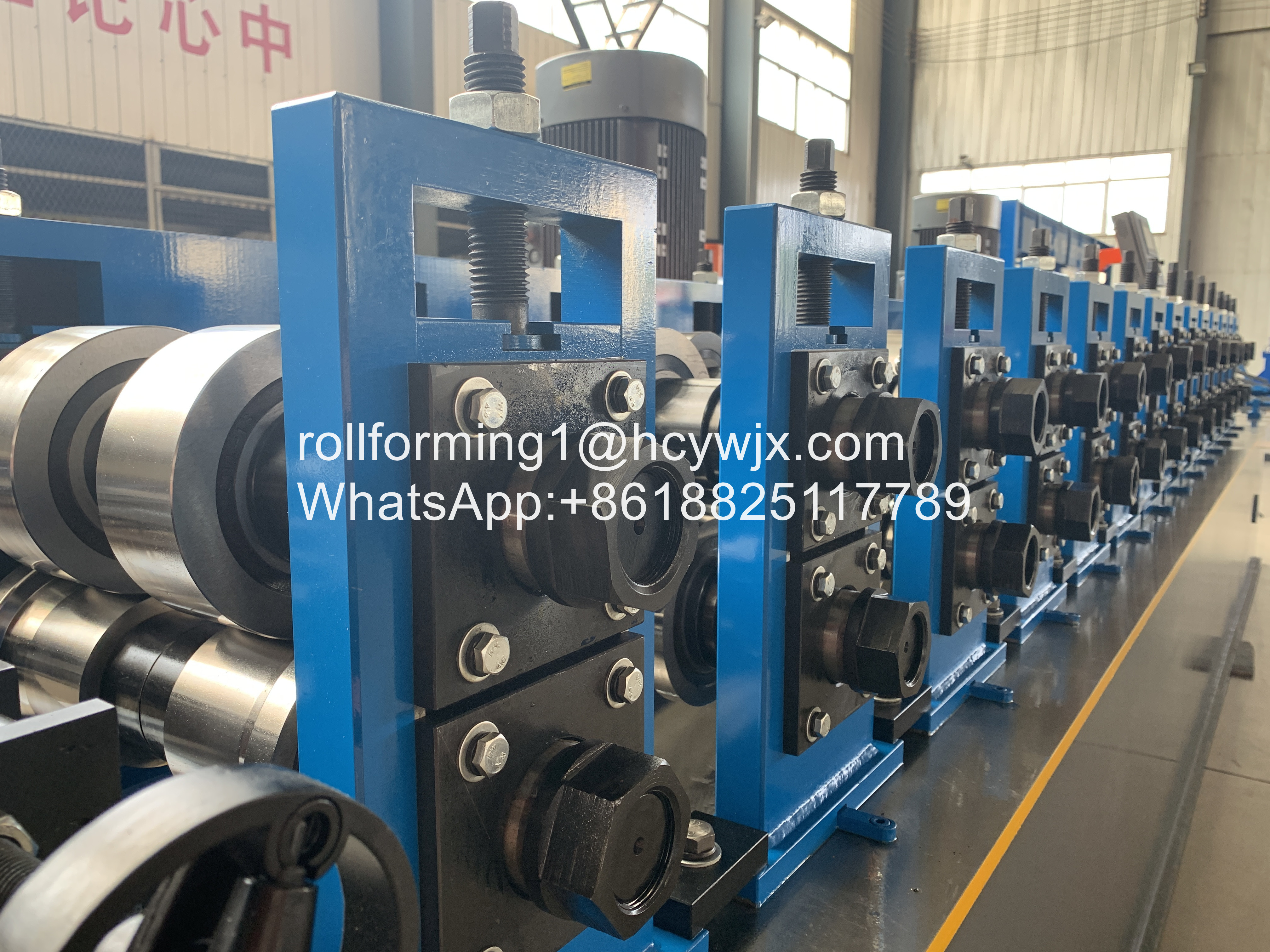

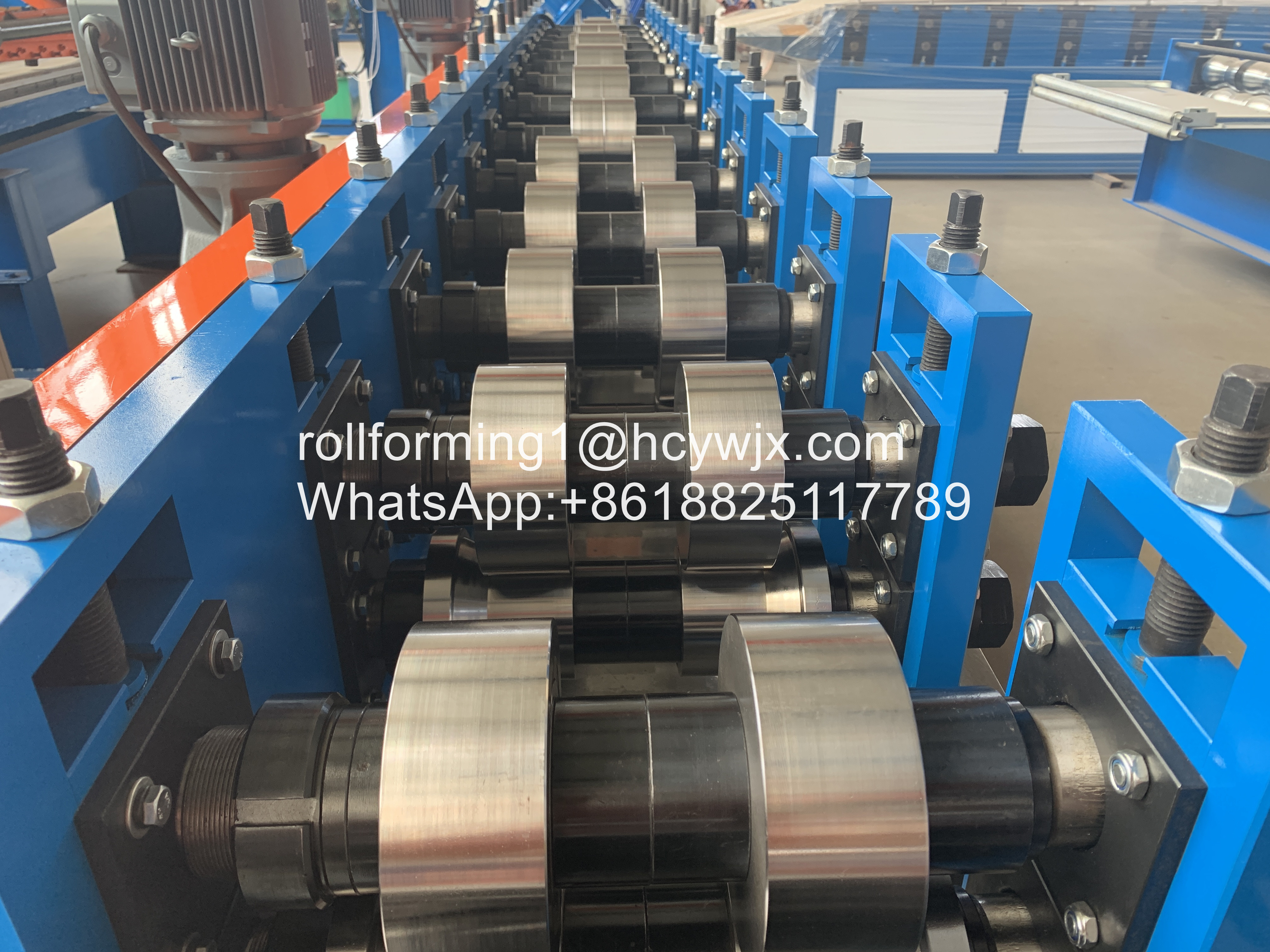

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 400# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

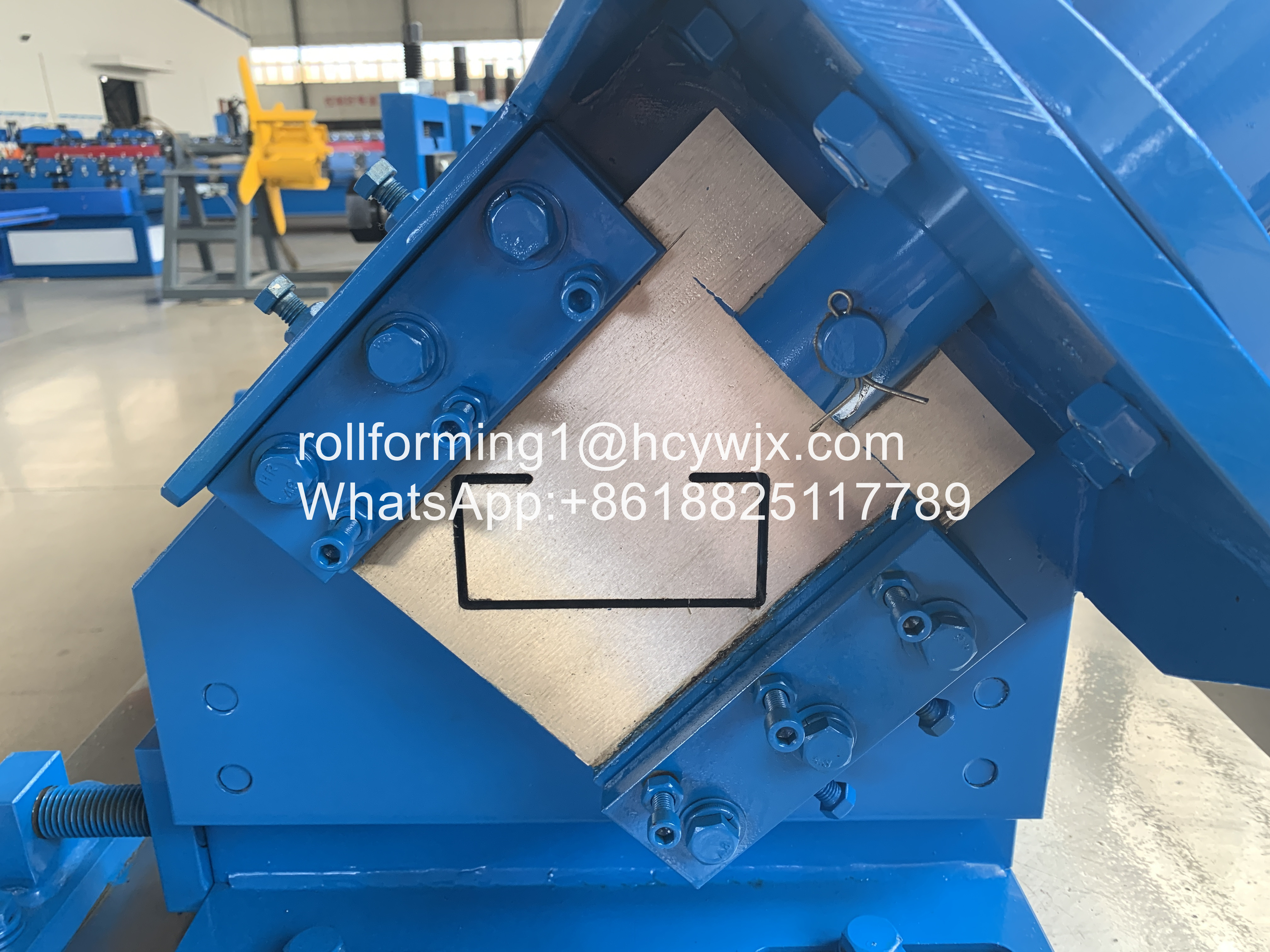

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



Custom Design Stud Track And Omega Metal Cold Roll Forming Machine With Capacity 20-40 M/MinCustom Design Stud Track And Omega Metal Cold Roll Forming Machine With Capacity 20-40 M/Min

FAQ



1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
