Ürün ayrıntıları:
|
| Material: | PPGi GI | capacity: | 20m/min |
|---|---|---|---|
| machine weight: | 4.5T | rollers: | 45# steel |
| Type: | Roof Sheet Roll Forming Equipment | cutting blade: | Cr12 |
| Vurgulamak: | roof tile roll forming machine,roof panel roll forming machine |
||

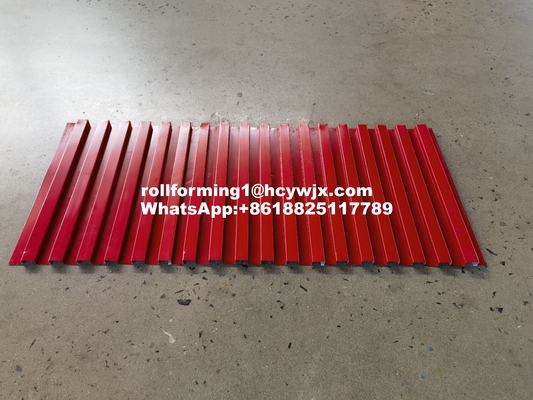

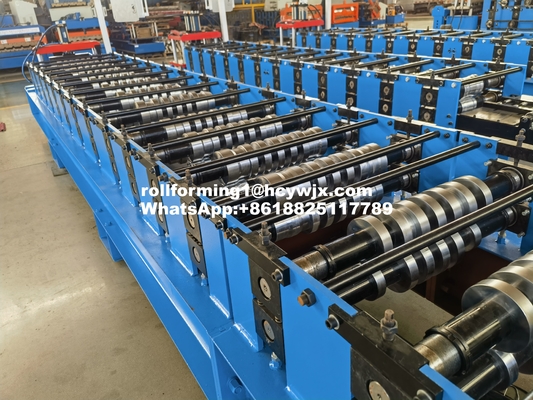

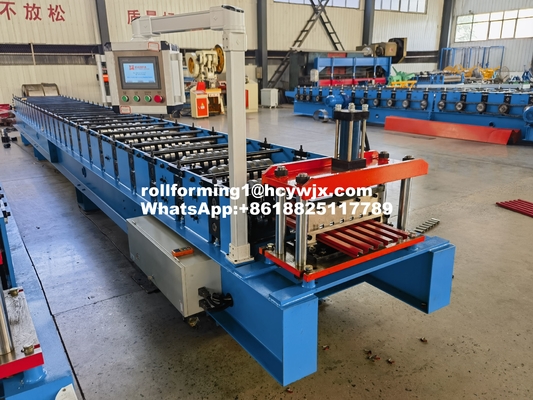

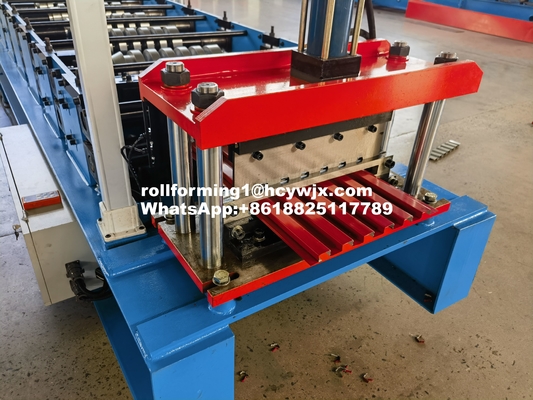

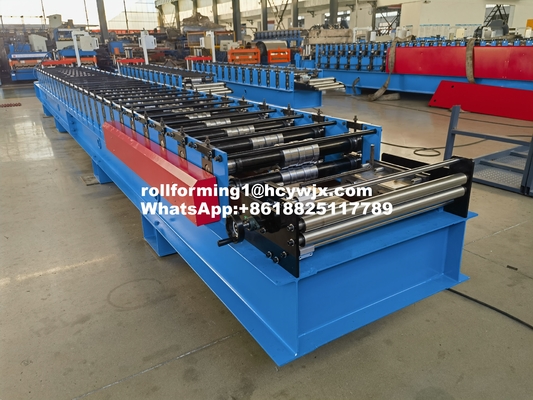

1. Roof Panel Roll Forming Machine Photos
2. Processing flow diagram of our roof roll forming machine
Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products
3. Technical parameters about roof roll forming machine
|
ROOF PANEL ROLL FORMING MACHINE |
||
| 1 | Suitable to process | Color steel |
| 2 | Width of the raw material | 1200 |
| 3 | Output width | 1000 |
| 4 | Rollers | 16 rows |
| 5 | Power | 4kw+4kw |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity |
12-15m/min or 25-35m/min by hydraulic motor |
| 8 | Diameter of the roller | 72mm |
| 9 | Weight | About 4 T |
| 10 | Voltage | 380V 50Hz 3phase |
| 11 | Received table | 4 meters |
| 12 | Raw material of the cutter | Cr12 |
| 13 | Raw material of the roller |
Bearing steel |
FAQ
1. You are the manuafacturer or trading company ?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
