Trapezoidal Roof Wall Panel Roll Forming Machine Sheet Metal Roll Former Touch Screen

Çin Trapezoidal Roof Wall Panel Roll Forming Machine Sheet Metal Roll Former Touch Screen Tedarikçi

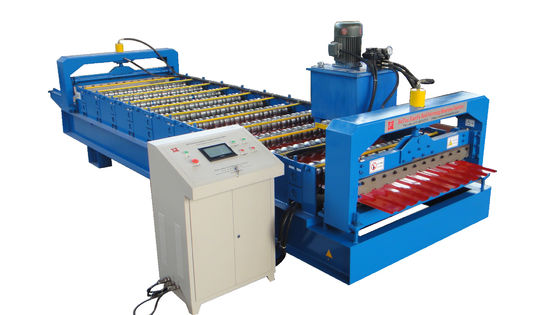

Büyük resim :  Trapezoidal Roof Wall Panel Roll Forming Machine Sheet Metal Roll Former Touch Screen

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC23

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 8000-15000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
Model Number: HC25 Suitable Material: HRB60 or equivalent
Material Thickness: 0.2-0.6mm Roller: High grade 45# steel

Product Description



1.Specification:

No. Item Description
1 Raw material Standard 1000mm
2 Working Speed 1-3m/min (not including cutting time)
3 Roller Stations 13 stations
4 Material of Roller 45# steel quenching process and chrome coated
5 Material of Main Shaft 45 steel forged,
6 Material of Shaft 70 mm forged 45#steel, quenching process
7 Main Motor Power 4KW
8 Electrical Hydraulic Station Power 4KW
9 Hydraulic Station Pressure 12.0 Mpa
10 Electrical Control System PLC Panasonic Japan
11 Dimension (L*W*H) 6500mm*1250mm*1300mm
12 Material of Cutter Cr12 Mov HRC 58-62
13 Driving Mode single chain 1 inch
14 Material Thickness 0.25-0.8mm
15 Cutting accuracy ±2mm
16 Power Supply 380V, 60HZ, 3 PHASES

2.Supply range:

No Item Qty Remark
1 5 ton manual decoiler 1
2 roll forming machine 1
3 Hydraulic station 1
4 Electric cabinet 1
5 3m receiveing table 2
6 Document 2 Operation manual



Packaging & Shipping



A:We have professional technicians for loading

Guaranteed the goods load into container without any damage.

B:Transportation : Machines need one 40 feet container to hold



Our Services



7.Guarantee:

A: Guaranteed against malfunctions due to manufacturing defects for 1.0 year after date of purchase. Space parts will be made free of charge,but freight cost should be paid by buyer.

B: Space parts will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

8.Commissioning:

1 technician for 7 working days from seller to buyer’s side for the instruction of installation and commissioning as well training. An English-Chinese interpreter will be send by seller in case of the buyer asks. All the expenses of them including local transportation, food, laundry and accommodation in buyer’s country and visa,international tickets will be on the buyer side. The hotel shall be equivalent or better than the level of a Chinese 3 star hotel. The buyer shall provide each person USD 100 per day as pocket money.

9.Payment terms

- 30% by TT in advance

- 70% is paid before the shipment by TT



10.Delivery time: 30 days after the down payment is received
