Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine

Çin Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine Tedarikçi

Büyük resim :  Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine

Ürün ayrıntıları:

Place of Origin: China
Marka adı: HC
Sertifika: ISO CE
Model Number: HC10

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detaylı ürün tanımı
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Automatic Roof Roll Forming Machine cutting blade: Cr12




1. corrugated profile roofing sheet bending roll forming machine

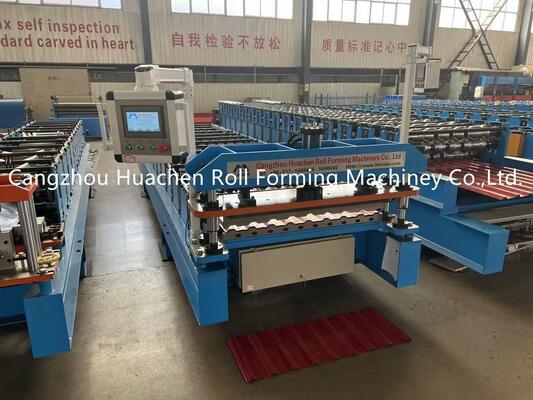

Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine

2. Processing flow diagram of our roof roll forming machine

Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products

Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine

3. Technical parameters about roof roll forming machine
Corrugated Profile Roofing Sheet Bending Machine / Roll Forming Machine



ROOF PANEL ROLL FORMING MACHINE

1Suitable to processColor steel
2Width of the raw material1200
3Output width1000
4Rollers16 rows
5Power4kw+4kw
6Thickness of the plate0.3-0.8mm
7Productivity

12-15m/min or
25-35m/min by hydraulic motor

8Diameter of the roller72mm
9WeightAbout 4 T
10 Voltage380V 50Hz 3phase
11Received table4 meters
12Raw material of the cutterCr12
13Raw material of the roller

Bearing steel



FAQ

1. You are the manuafacturer or trading company ?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
