Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness

Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness
Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness

Büyük resim :  Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC914
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness

Açıklama
type: Professional supplier automatic metal roof glazed tile roll forming machine manufacturers width: 1250
thickness: 0.3-0.6mm capacity: 2-4m/min
Dimension: 7.5*1.5*1.2m life time: 10 years
Weight: 6.5T
Vurgulamak:

roll forming equipment

,

cold roll forming machine

Professional supplier automatic metal roof glazed tile roll forming machine manufacturers



1. The Product Description of Glazed tile roll forming machine



(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



Panel Glazed Tile Roll Forming Machine For Steel Construction



(3).Technical Detail



A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.3-0.6 mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.

Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness 1Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness 2Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness 3Automatic Metal Roof Glazed Tile Roll Forming Machine 0.3 - 0.6mm Thickness 4

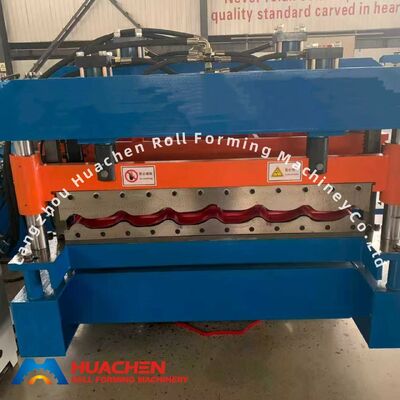

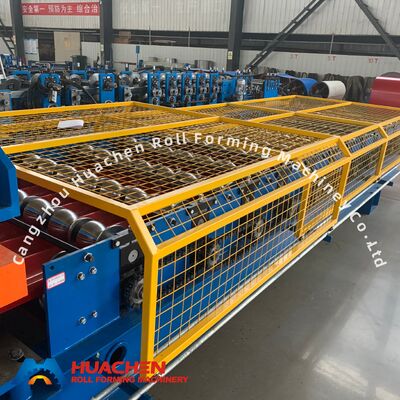

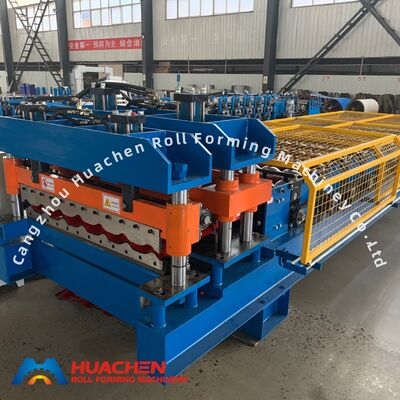

2. More Pictures of Glazed tile roll forming machine



1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .

Our Services



A. One-Years product warranty.

B. Training and installation available.

C. The technical support for the whole life.





 FAQ



1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
