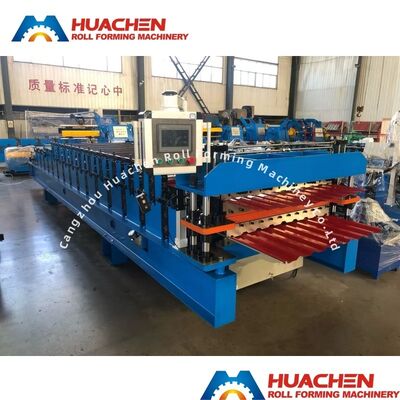

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

Çin Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control Tedarikçi

Büyük resim :  Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

Ürün ayrıntıları:

Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO/CE
Model Number: HC18-36

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1set
Fiyat: 12000-17000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Detaylı ürün tanımı
Power(W): 5.5KW Warranty: 18 month
control system: Panasonic PLC working speed: 8-10m/min

Product Description



1. The Product Description of Aluminum steel roof roll forming machine



(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.



(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter



Lightweight Double Layer Aluminum Steel Roof Roll Forming Machine



(3).Technical Detail



A. General

Suitable Material HRB60 or equivalent
Material Thickness 0.2-0.6 mm
Dimension About 7.2*1.3*1.1m(L*W*H) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.

Cutting

Automatically stop and cutting when it comes to the set

length.



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP14ES

Well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



2. More Pictures of Aluminum steel roof roll forming machine

Lightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC ControlLightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC ControlLightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC ControlLightweight Aluminum Roof Double Layer Roll Forming Machine Panasonic PLC Control

1. Professional

15 years' rich experience!

a.Specialized in roll forming machine since 1998.

b.Keeping improving the quality.

2. Low price

Save your money from every part!

a. Low labor cost;

b. Convenient transportation;

c. Complete supporting industries.

3. PLC

Ensuring high accuracy and easy to operate!

Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

4. OEM / ODM

Customers’design, color & logo are also accepted!

Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

5. One-Years warranty, whole life service

Keep troubles far away from you!

Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
