Ürün ayrıntıları:
|
| Usage: | garage door | function: | anti wind |
|---|---|---|---|
| width: | 6M | thickness: | 0.3-0.6mm |
| capacity: | 9-10m/min | warranty: | 1 year |
| Vurgulamak: | roll forming machinery,door frame roll forming machine |
||

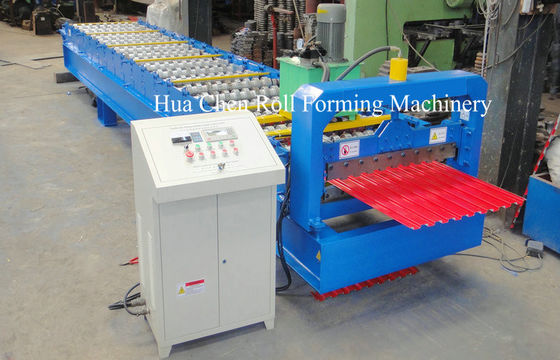

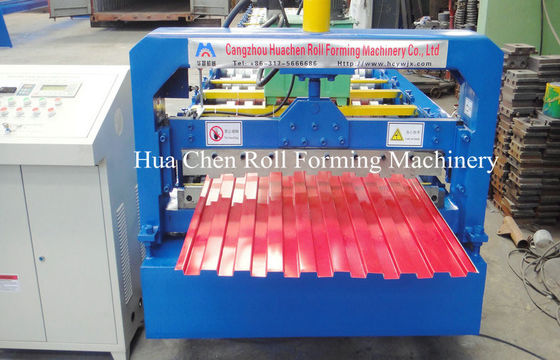

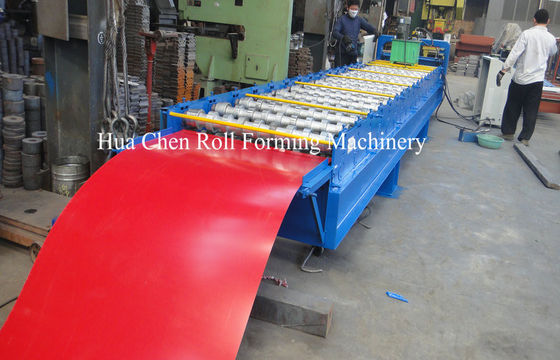

Automatic metal colorful steel slats shutter door production line cold rolling forming machine
Equipment components:

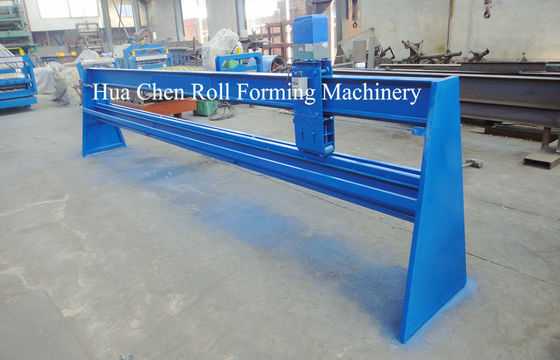

Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Name | automatic metal colorful steel slats shutter door production line cold rolling forming machine |
Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
Width of the feeding material | 100-160mm |
Roller station | 10-15 rows |
Thickness of feeding material | 0.3-0.8mm |
Power Supply | 380V, 3-Phase,50Hz |
Productivity | 10-20m/min |
Rollers' material | 45# steel |
Diameter of shaft | 75mm |
Roller Diameter | 50mm |
Wall thickness of main forming machine | 14mm steel plate |
Main forming machine body | 300 mm H steel |
Motor power | 4+3kw |
Cutter Standard | GCr12 |
Size | 7500*1500*1600mm |
Weight | About 2.5T |
Custom | According to customer's requirements |
Description:
Rolling Shutter Door Roll Forming Machine Main parameter
No. | Main parameter of Rolling Shutter Door Roll Forming Machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1000mm |
3 | Rollers | 18 rows |
4 | Dimensions | 8600*1450*1510mm |
5 | Power | 3+3kw |
6 | Rolling material | 45# steel(plated chrome on surface) |
6 | Thickness of the plate | 0.6mm |
7 | Productivity | 20m/min |
8 | Diameter of the roller | Φ66 mm |
9 | Voltage | 380V 50Hz 3phases |
10 | Material of the cutting plate | Cr12 |
11 | Hydraulic | 40# |
12 | Processing precision | Within 1.00mm |
13 | Control system | PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

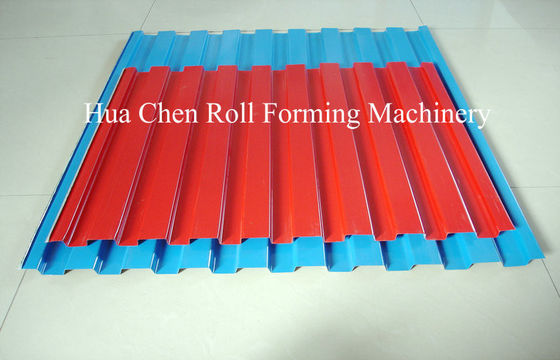

This type of sheet can be widely used as the door of garage, storage and supermarket.
Competitive Advantage
1.use for villa roofing sculpt
2.beautiful, durable
3.customer customization
4.CE certification
5.professional manufacturer
