High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed

1set
MOQ
8000-2900USD
fiyat
High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Vurgulamak:

automatic pipe cutting machine

,

steel plate cutting machine
Temel bilgiler
Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC1000
Ödeme & teslimat koşulları
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Ürün Açıklaması

Metal Plate Cutting Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000-1250mm

3. Rollers: 3 rows

4. Dimensions: 3.5*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Hydraulic: 40#

10. Processing precision: Within 1.00mm

11. Control system: PLC control

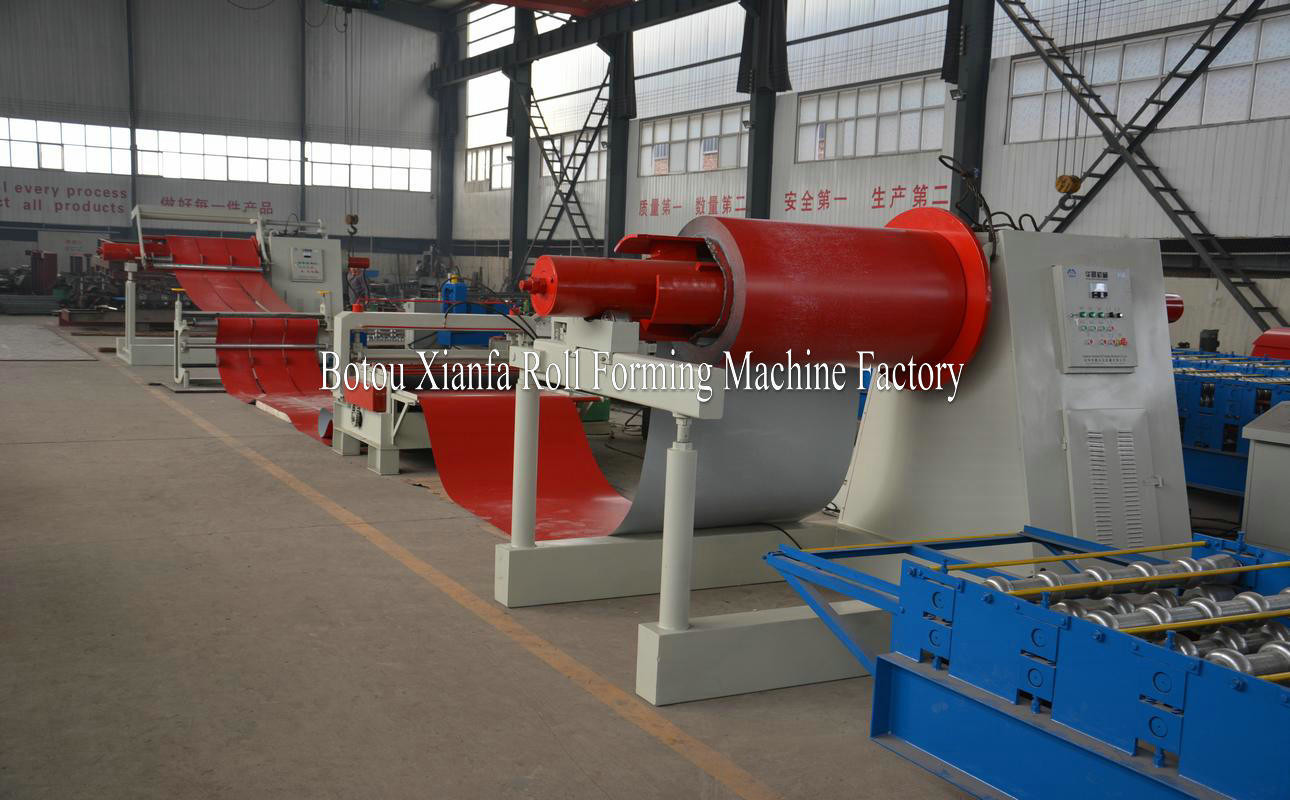

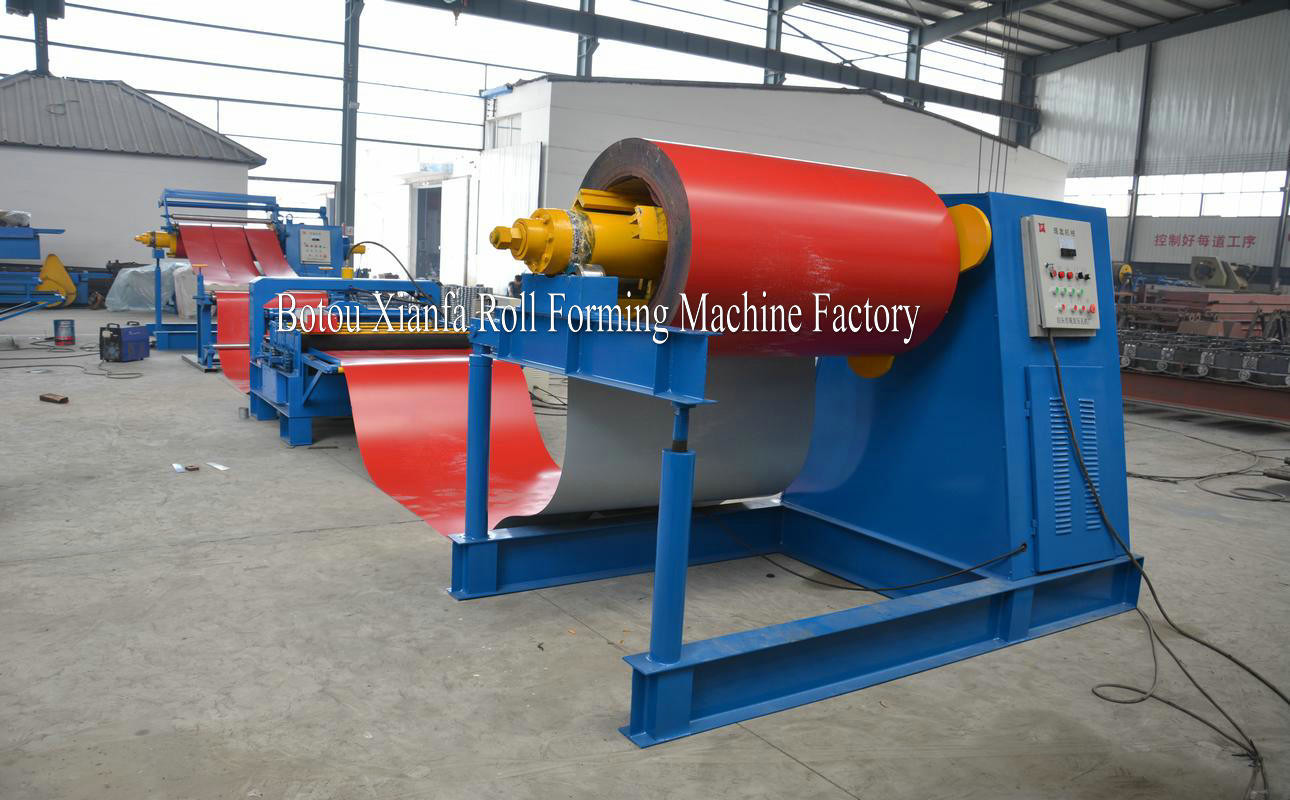

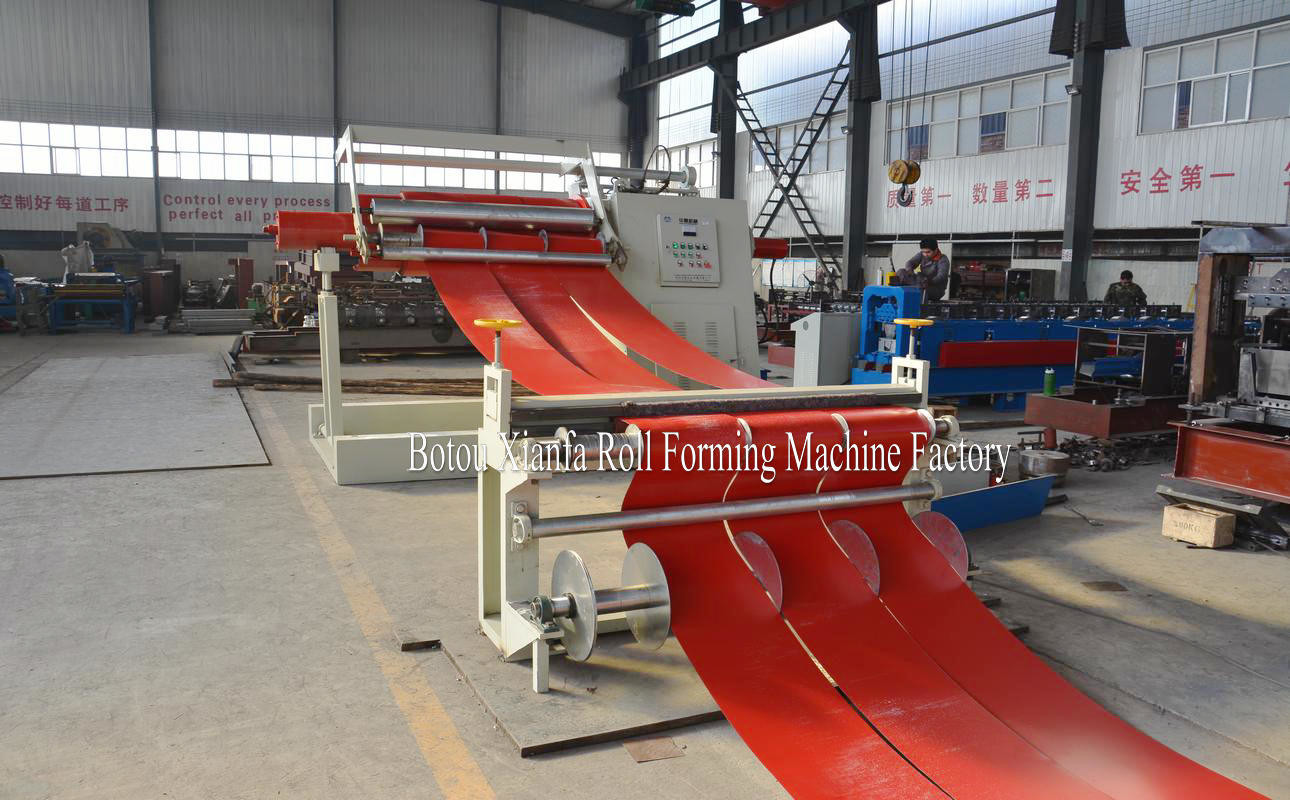

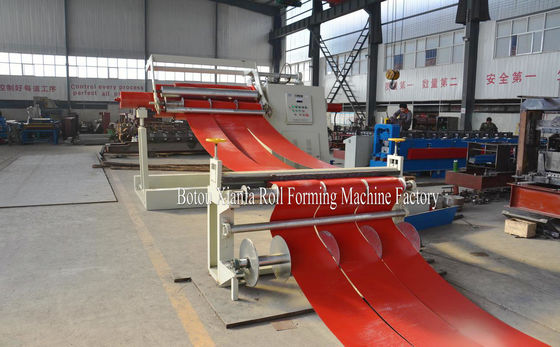

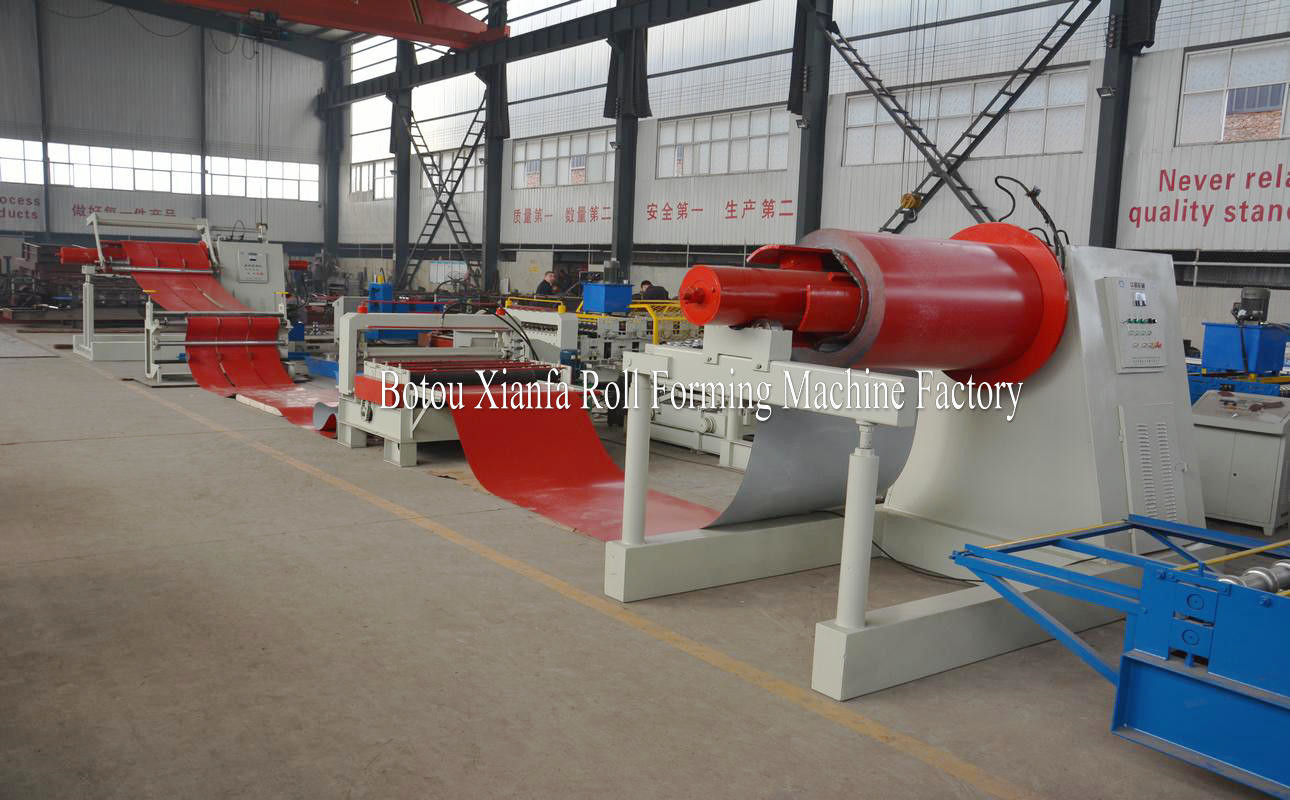

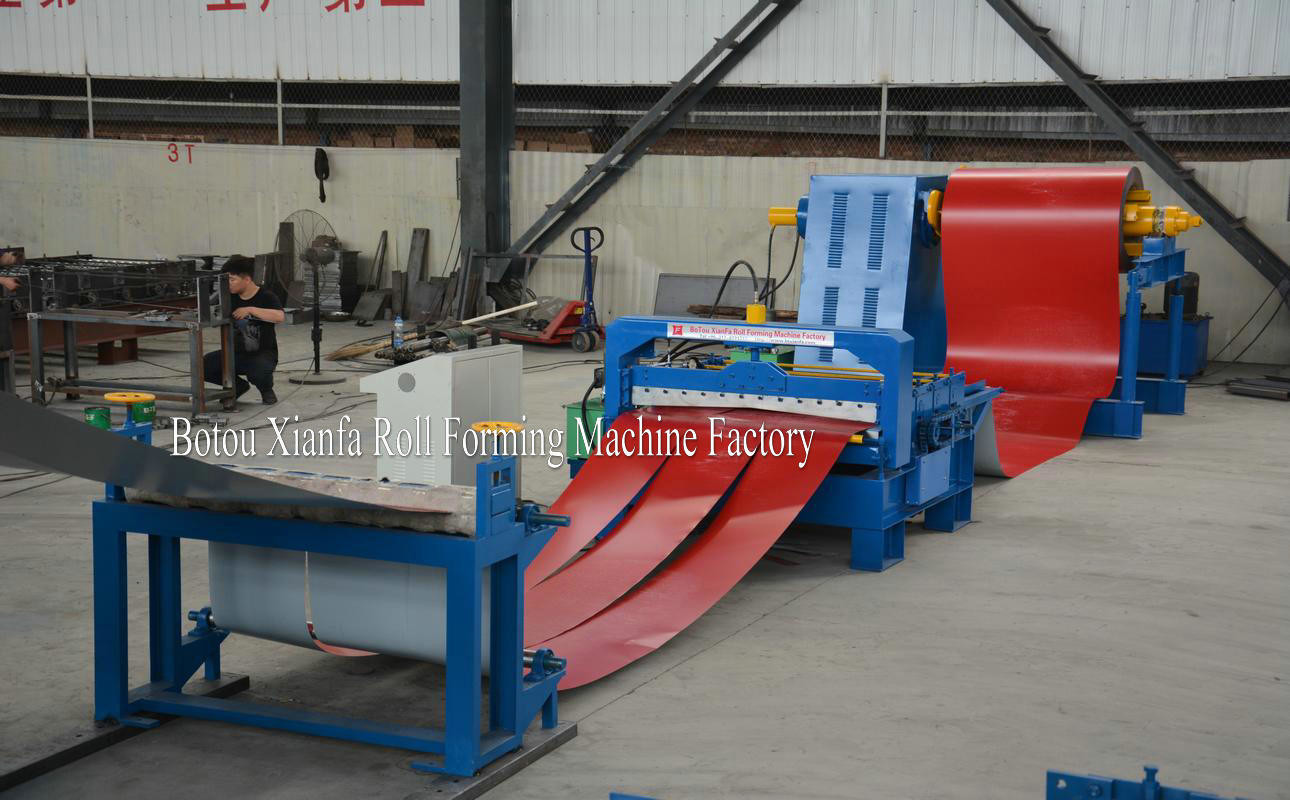

High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed 0High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed 1High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed 2High Efficiency Metal Plate Decoling Slitting Cutting Machine Line with fast speed 3

Description:



Flatting-Cutting Machine Main parameter

No.

   Main parameter of Flatting-Cutting Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000-1250mm

3

Rollers

3 rows

4

Dimensions

3.5*1.55*1.51m

5

Power

4+4kw

6

Thickness of the plate

0.3-0.7mm

7

Productivity

25m/min

8

Voltage

380V 50Hz 3phases

9

Hydraulic

40#

10

Processing precision

Within 1.00mm

11

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting





Application



use for cut the sheet to strips, also use for other accessories.





Competitive Advantage





1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support





Etiket:

sheet metal cutting machine

automatic pipe cutting machine

steel plate cutting machine
