Ana sayfa /Ürünler/Dilme Kesme Makinesi/Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE

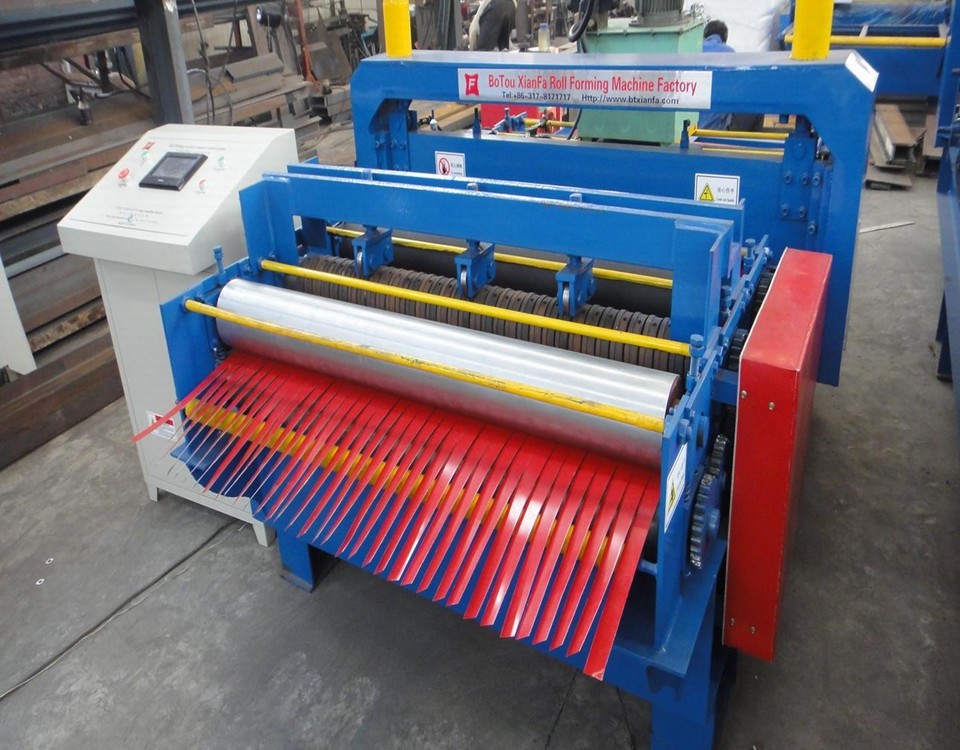

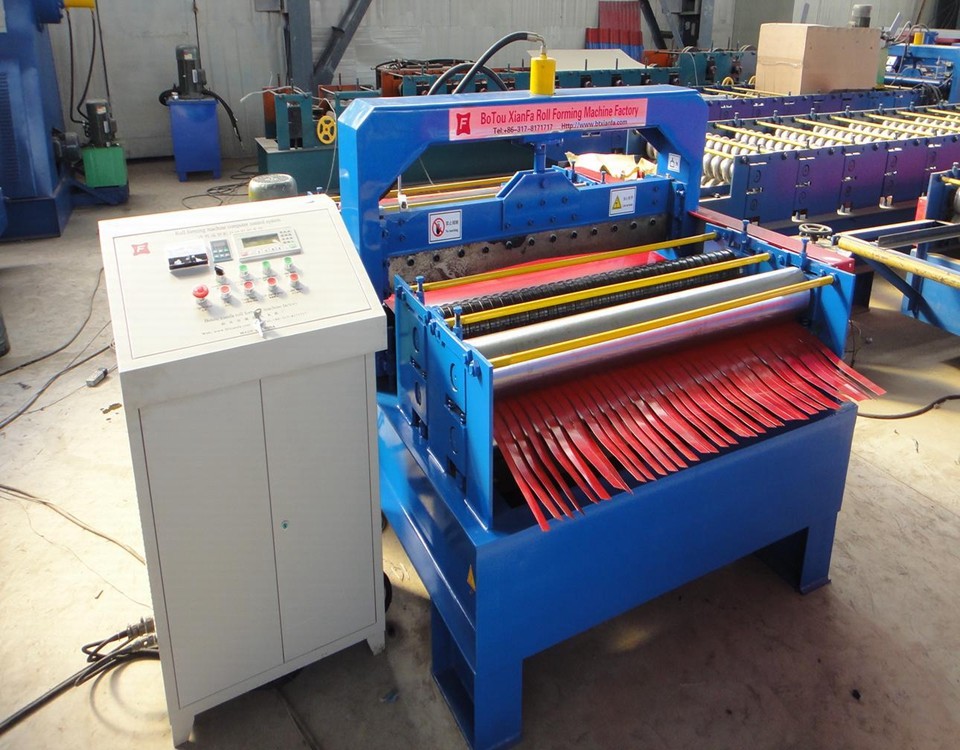

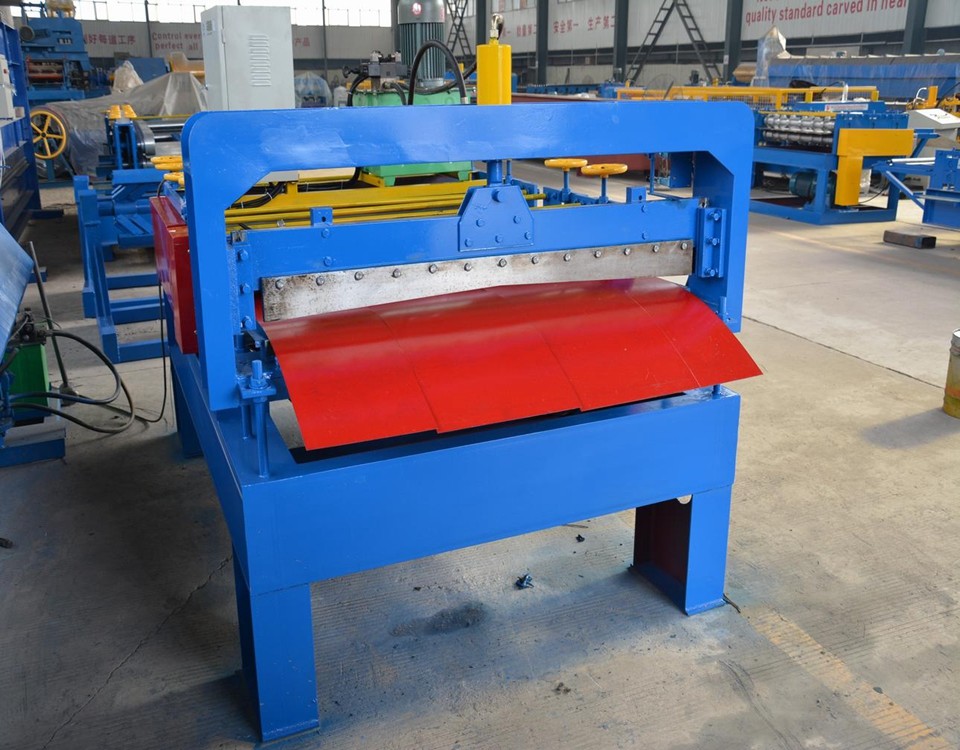

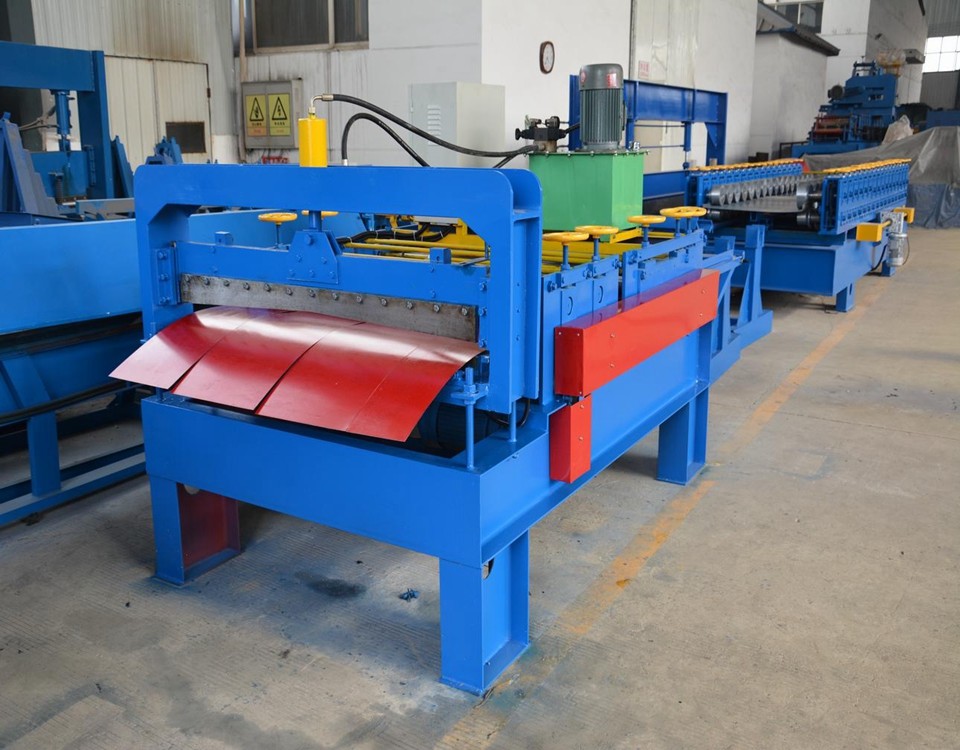

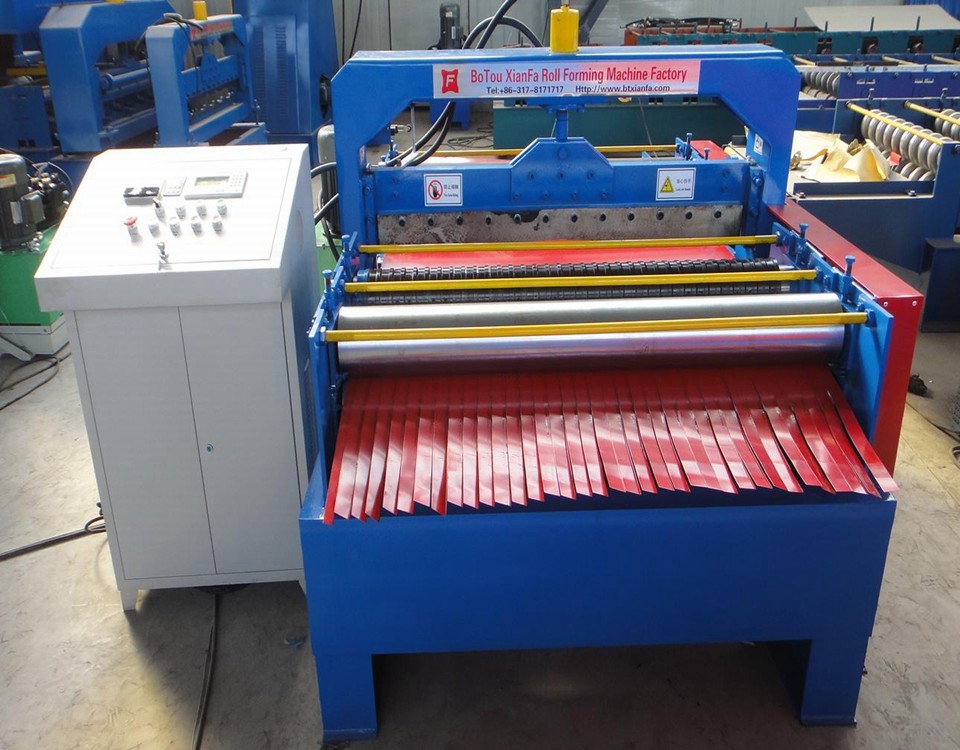

Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE

1set
MOQ
8000-2900USD
fiyat
Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Width: 1250mm
Thickness: 0.3-0.8mm
Blade: as require
Power: 3+3KW
Speed: 8-10m/min
Life time: 10 years
Vurgulamak:

sheet metal cutting machine

,

automatic pipe cutting machine
Temel bilgiler
Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC1000
Ödeme & teslimat koşulları
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Ürün Açıklaması

Metal Plate Cutting Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1000-1250mm

3. Rollers: 3 rows

4. Dimensions: 3.5*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Hydraulic: 40#

10. Processing precision: Within 1.00mm

11. Control system: PLC control



Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE 0Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE 1Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE 2Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE 3Full Automatic Metal Plate Cutting Slitting Machine with 20 Blade approved CE 4

Description:



Flatting-Cutting Machine Main parameter

No.

   Main parameter of Flatting-Cutting Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1000-1250mm

3

Rollers

3 rows

4

Dimensions

3.5*1.55*1.51m

5

Power

4+4kw

6

Thickness of the plate

0.3-0.7mm

7

Productivity

25m/min

8

Voltage

380V 50Hz 3phases

9

Hydraulic

40#

10

Processing precision

Within 1.00mm

11

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting





Application



use for cut the sheet to strips, also use for other accessories.





Competitive Advantage





1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency





Etiket:

sheet metal cutting machine

automatic pipe cutting machine

steel plate cutting machine
