Ürün ayrıntıları:
|
| color: | blue | type: | automatic |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| per month: | 30 sets | ||
| Vurgulamak: | metal forming machines,cold roll forming equipment |
||

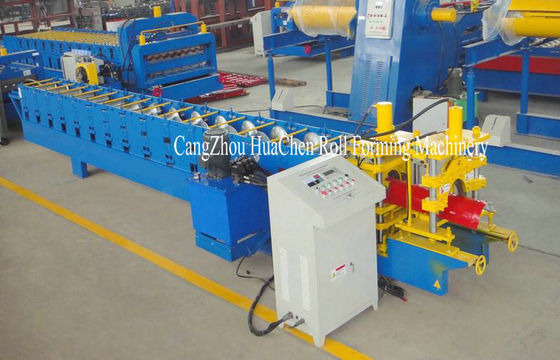

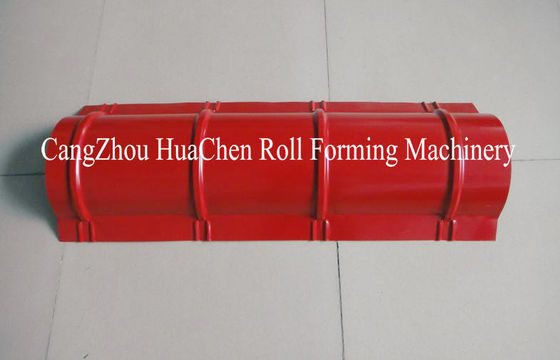

Galvanized Steel Ridge Cap Roll Forming Machine Hydraulic Control Glazed Tile Type
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm
3. Rollers: 15 rows
4. Dimensions: 8.1*1.35*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Main parameter
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
400mm |
|
3 |

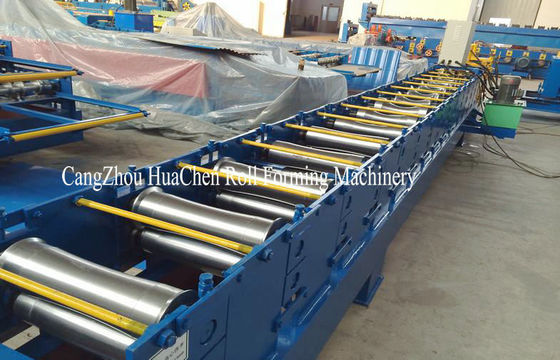

Rollers |
15rows |
|
4 |
Dimensions |
8100*1350*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

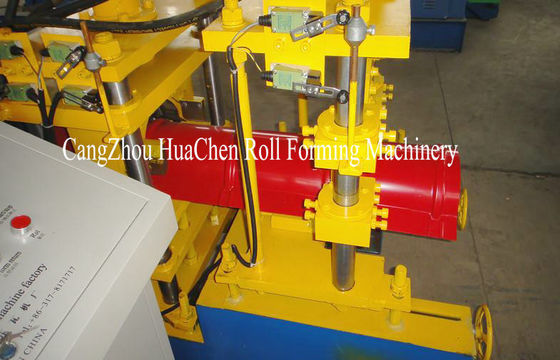

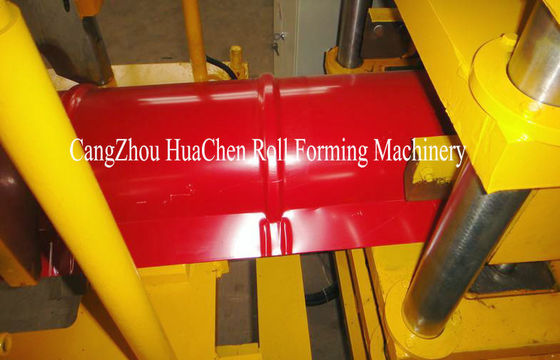

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
