Ürün ayrıntıları:
|
| type: | Double Decking Roofing Sheet Forming Machine with hydraulic motor control | rollers: | 19 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| Dimensions: | 7*1.5*1.5m | Thickness of the plate: | 0.3-0.6mm |
| Vurgulamak: | roof tile roll forming machine,cold roll forming machine |
||

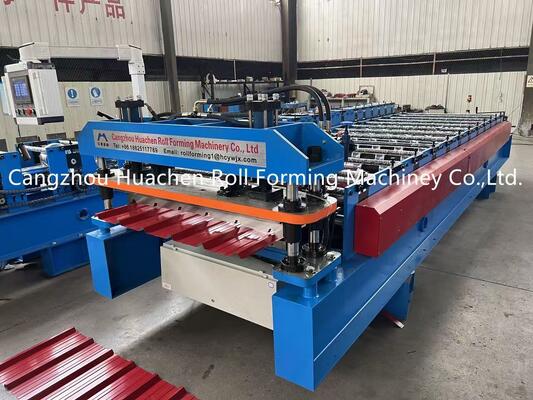

Single layer Roofing Sheet Roll Forming Machine with hydraulic motor control
Description
Metal roof sheet roll forming machine, glazed tiles rolling forming machine, roofing making machine, wall panel roll forming machine, steel profile roll forming machine, sandwich panels roll forming machine, floor deck roll forming machine, C/Z/U shaped galvanised steel bar roll forming machine, C purlin forming machine, china machinery, production machine
Competitive Advantage:
1. Full Automatic
2. Welded iron type
3. Save money
4. excellent quality
5. Operate easily
Specification
| NO. | ITEM | PARAMETER | NOTE | |
| 1. |
Suitable material |
Type | Pre-painted sheet, Galvanized sheet |
|
| Width(mm) | 1200mm | |||
| Thickness(mm) | 0.3-0.8mm | |||
| Yield stress(mm) | G220-G300 | |||
| 2. | Product specifications |
Detail as the attached file | ||
| Length | Any length | |||
| 3. | Power requirement |
Type | 380v/3ph/50hz | Motor brand shanghai Lichao |
| Main Motor power | 4kw | |||
| Cutter power | 4kw | |||
| 4. | Forming speed(m/min) | 8-10m/min | Not include the time of cutting | |
| 5. | Manual Decoiler (Optional) |
Type | Manual | |
| Max capacity | 5t | |||
| Suitable coil OD(MM) | 1200 | |||
| Suitable coil ID(MM) |
508 | |||
| 6. | Forming stand | 14 | Depend on actual design | |
| 7. | Thickness of structure | 16mm | ||
| 8. | Forming shaft diameter(mm) | 70solid | ||
| 9. | Type of cutting |
Roll formed and |
||
| 10. | Control system | Panasonic PLC and inverter | ||
| 11. | Install dimension(depend on the final design) | 5.2m×1.1m×1.3m | Without panel length | |
| 12. | Total weight (Approx) | 3T | Depend on final design | |
Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
MachineComponents
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Hydraulic system | 1set | |||
| 3 | Electric control system | 1set | ||
| 4 | Supporter/Automatic Stacker |
1set |
||
