Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

1set

MOQ

8000-19000USD

fiyat

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Type: Hi-Rib Trapezoidal Roof Wall Panel Roll Forming Machine for Roof Wall Panel

Usage: Wall

Machine power: 4+4KW

Speed: 15-20m/min

Worker: 1-2only

life time: 20 years

Vurgulamak:

sheet metal rolling equipment

roof sheet making machine

Temel bilgiler

Place of Origin: Botou Hebei China

Marka adı: HC

Sertifika: ISO

Model Number: HC8

Ödeme & teslimat koşulları

Packaging Details: Main machine is nude,the computer control box is packed by carton box

Delivery Time: 30days

Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability: 20 sets/month

Fotoğraf Galerisi

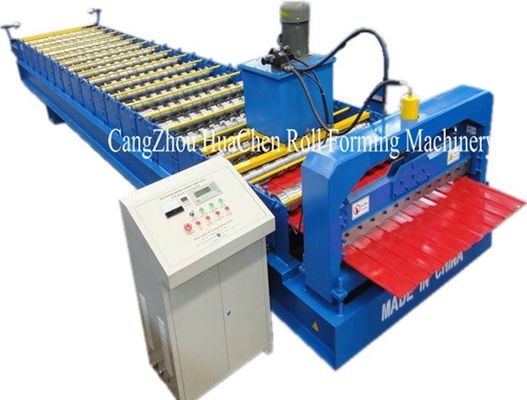

Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

Ürün Açıklaması

Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine

Technical Specifications of Trapezoidal Roof Wall Panel Roll Forming Machine

Item	Trapezoidal Roof Wall Panel Roll Forming Machine
Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made, 1000mm or 1200mm or 1250mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Trapezoidal Roof Roll Forming Machine	Forming Stations	18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min, adjustable
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Hi Rib Trapezoidal Wall Panel Roll Forming Machine , roof sheet forming machine 0

Main Components of Trapezoidal Roof Wall Panel Roll Forming Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Main Trapezoidal Roof Roll Forming Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units

Applications

Trapezoidal Roof Panel, Roof Wall Panel, Hi-rib Roof Panel, Metal roof wall cladding, roof wall panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

HUACHEN Advantage

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
