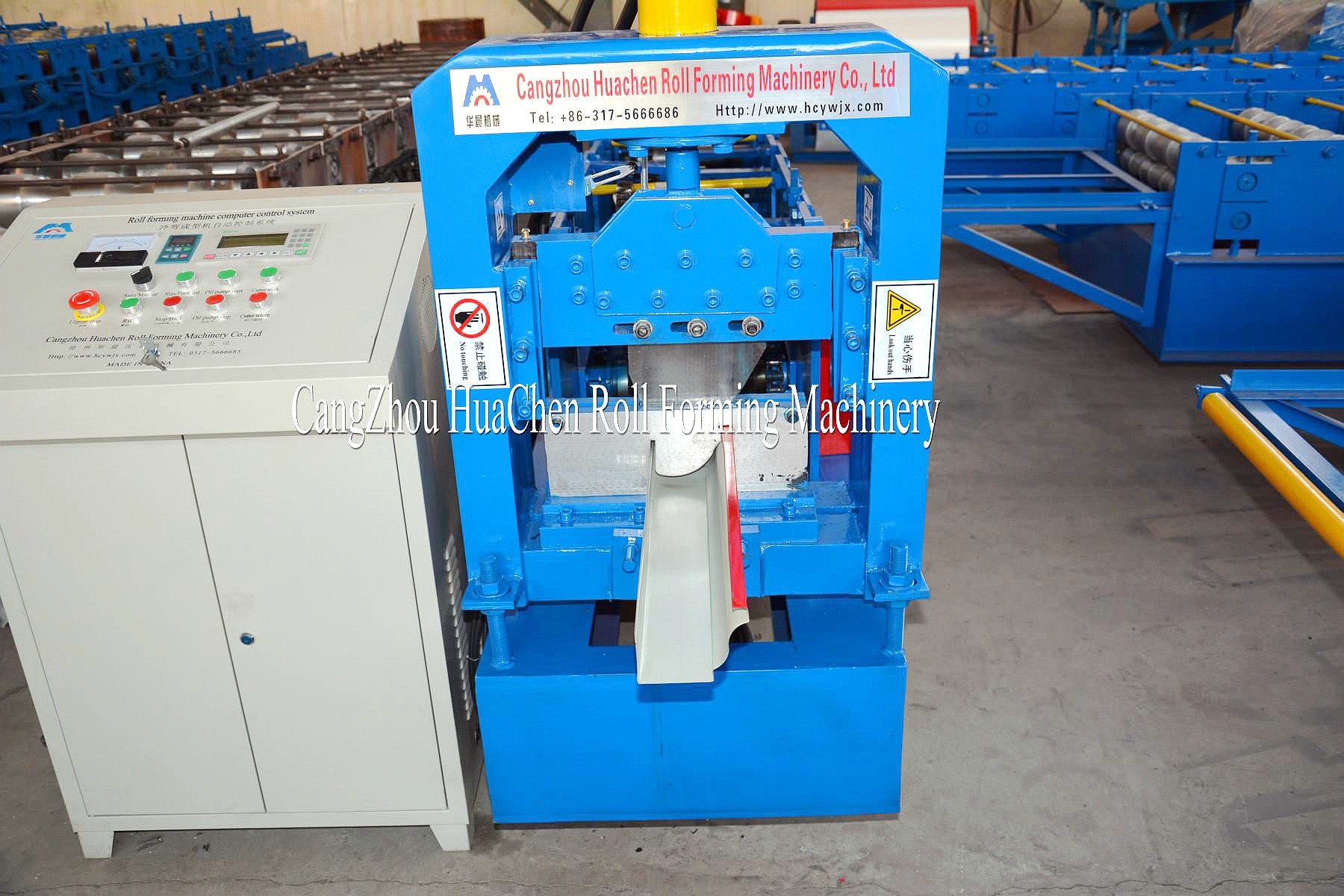

Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed

Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed
Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed
Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed

Büyük resim :  Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC330
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 25600-48900USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed

Açıklama
Type: Tile Forming Machine Power(W): 4+4kw
Warranty: 1 year
Vurgulamak:

sheet forming machine

,

sheet metal rolling machine

Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed

Introduction

Introducation:

Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.

Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.

Main Parameters:



No. main parameter of Aluminum Roofing Gutter Cold Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 333mm
3 Roller 22 rows
4 Dimensions 77000*1550*1910mm
5 Power 3+3 kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 10m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ66mm
10 Weight About 3.4T
11 Voltage 380V 50Hz 3phases
12 Control system PLC control

 Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed 0Cold Aluminum Roofing Gutter Roll Forming Machine High Precise And Speed 1

The Chart of Process Flow:

manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table

Aluminum Roofing Gutter Cold Roll Forming Machine



Components and Technical Specification



1. Manual Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T

Inner diameter: 500-508mm



2. Feeding Table



Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.



3. Hydraulic System



Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.



4.Computer Control Cabinet



The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

PLC:EURA



5.Cutting System:

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

6.Output Table



It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
