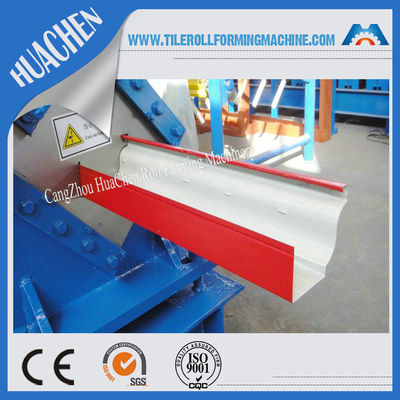

Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Müşteri yorumları
Makine kullanımı kolay. Patron çok hoş biri.

—— Avrupa'dan Mr.Angolon

Bu iyi bir üretici, iyi bir İngilizce iletişimci ve makinelerinizi beğendim Bu kaliteli ve güzel!

—— Afrika'dan Bay Mark

Güzel tedarikçi! Hızlı teslimatınızı ve hızlı üretim döngüsünü beğendim, sizinle irtibatta kalın

—— Amerika'dan Bay Jack

Ben sohbet şimdi

Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color
Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color
Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Büyük resim :  Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Ürün ayrıntıları:
Menşe yeri: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model numarası: HC120
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1set
Fiyat: 8000-19000USD
Ambalaj bilgileri: Main machine is nude,the computer control box is packed by carton box
Teslim süresi: 30days
Ödeme koşulları: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Yetenek temini: 20 sets/month

Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Açıklama
Vurgulamak:

sheet metal rolling machine

,

metal roll forming machines



Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color

Product Description


Steel forming machine is to produce light steel main equipment, the use of steel or steel cold-formed after forming, rolling production models of a variety of specifications purlins finished.

The wall thickness of the product out of the apparatus can be made very thin, but also greatly simplifies the production process, improve production efficiency. Wall thickness can be produced hot-rolled with the general method but difficult to produce a uniform cross-sectional shape of the complex variety of profiles and cold-formed steel of different materials.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Main Forming System
◊ Width & Height & Thickness of sheet: According to Drawings
◊ Material: GI sheet coil or Colored sheet coil
◊ Motor Power: 5.5 kw forming system
◊ Roller material:Cr12.
◊ Surface of Roller: Heat treatment HRC58-60.
◊ Diameter of main shaft: 60mm #45 steel, heat treat modulation
◊ Forming station: 12 stations.
◊ Transmission: by chain and gear
◊ Measuring accuracy: +/- 0.5 mm/M.
◊ Safety Hood: Cage
◊ Arch middle plate: 30mm thickness.
◊ Output: 8-10 Tons per shift (8 hrs.).
◊ The machine base is assembled and welded by high quality steel.
Hydraulic Cutting Device
◊ Cutting way: Tracking (Flying)..
◊ Oil pump station: 1set
◊ Motor power of Oil pump station: 7.5kw with cooling system.
◊ Forced air cooling device available.
◊ Cutting mould: 1 sets.
◊ Material of blade: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color 0Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color 1Hydraulic gutter roll forming machine , ISO Steel rollform equipment Customization color 2

FAQ

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.


Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

Our Service

> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.

>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
