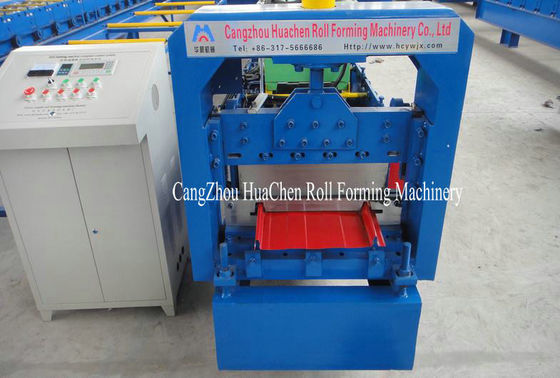

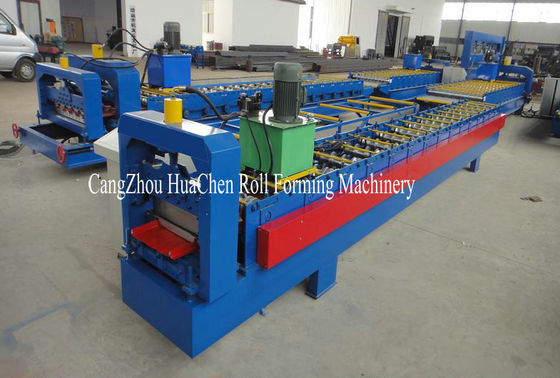

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage
Roof Sheet Profile Machine, Tile Making Machine
1.Working Flow: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltage
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
Quick Detail: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltage
1. Suitable to process: Color steel plate
2. Width of the plate: 500mm
3. Rollers: 16 rows
4. Dimensions: 7.8*1.35*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltage
Roof Sheet Roll Forming Machine Main parameter
|
No.
|
Main parameter of Roof Sheet Roll Forming Machine
|
|
1
|
Suitable to process
|
Color steel plate
|
|
2
|
Width of the plate
|
500mm
|
|
3
|
Rollers
|
16 rows
|
|
4
|
Dimensions
|
7800*1350*1510mm
|
|
5
|
Power
|
3+3kw
|
|
6
|
Rolling material
|
45# steel(plated chrome on surface)
|
|
7
|
Thickness of the plate
|
0.3-0.6mm
|
|
8
|
Productivity
|
8-10m/min
|
|
9
|
Diameter of the roller
|
Φ66mm
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
11
|
Material of the cutting plate
|
Cr12
|
|
12
|
Hydraulic
|
40#
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
PLC control
|
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

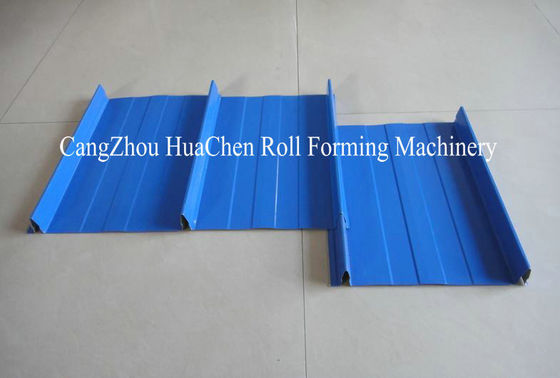

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. ISO certification
