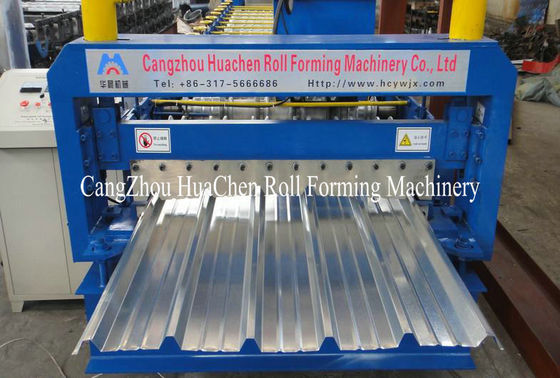

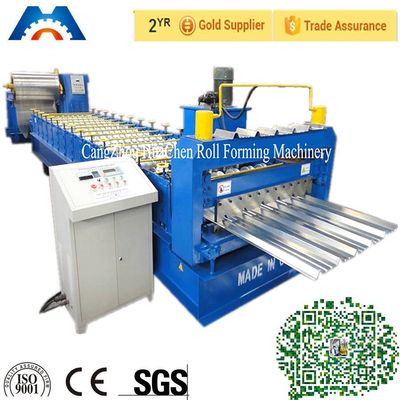

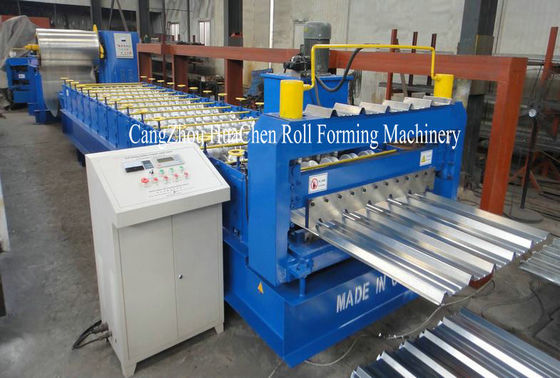

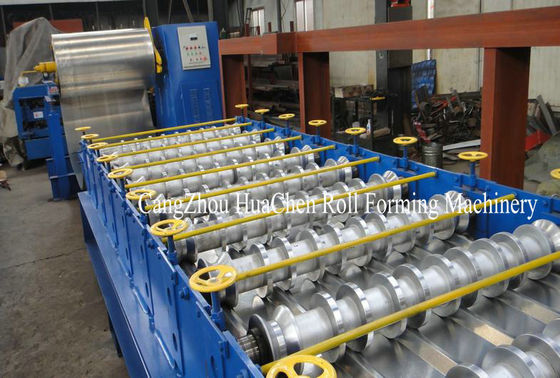

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate

1set
MOQ
8000-29000USD
fiyat
Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
raw material: aluminum sheet
type: automatic
use: roof panel
profile: customized
cutting methold: hydraulic cut
roller stations: 14
thickness: 0.3-0.7mm
Vurgulamak:

cold roll forming machine

,

roof panel roll forming machine
Temel bilgiler
Place of Origin: Botou Hebei China
Marka adı: HC
Sertifika: ISO
Model Number: HC30-200-1000
Ödeme & teslimat koşulları
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Ürün Açıklaması

Roof Sheet Roll Forming Machine





Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

3. Rollers: 14 rows

4. Dimensions: 7.1*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

14 rows

4

Dimensions

7100*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 0Hi-Rib IBR Roof Sheet Roll Forming Machine Automatic 14 Rows Color Steel Plate 1





Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight
