Ürün ayrıntıları:
|
| Speed: | 20m/min | Length: | 12 or more M |
|---|---|---|---|
| Power: | 4+4KW | Thickness: | 0.6mm or customized |
| Vurgulamak: | cold roll forming machine,roof panel roll forming machine |
||
High Capacity Roofing Sheet Roll Forming Machine in CE Standard
Description:
20m/min High Capacity Roofing Sheet Roll Forming Machine in CE Standard Main parameter
|
No. |
Main parameter of High Capacity Roofing Sheet Roll Forming Machine in CE Standard |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
11 rows |
|
4 |
Dimensions |
5800*1450*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
15-20m/min |
|
9 |
Diameter of the roller |
Φ70mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

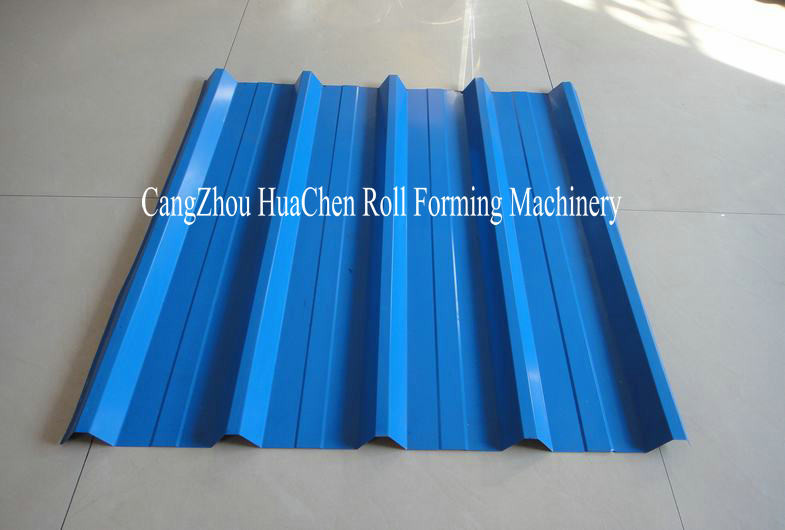

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1.use for villa roofing sculpt
2.beautiful, durable
3.customer customization
4.CE certification
5.professional manufacturer
